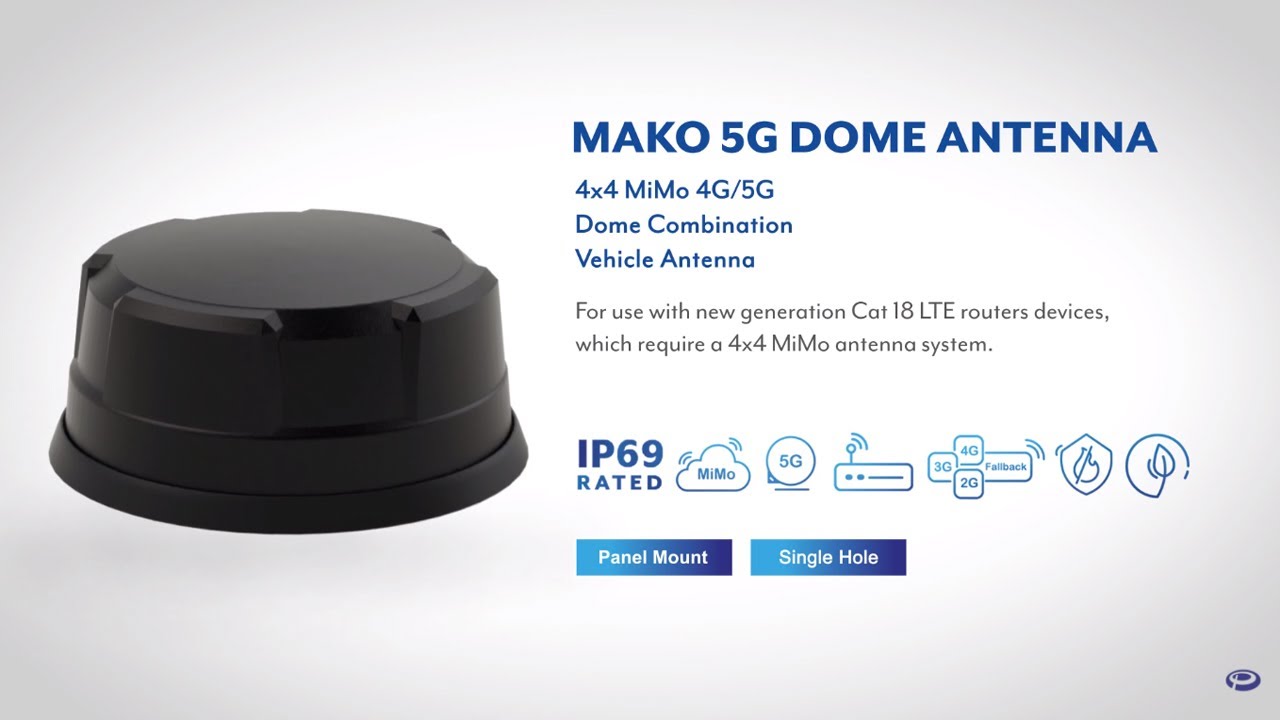

MAKO 5G Dome Antenna

Описание: The MAKO 5G Dome range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6x6 MiMo WiFi 2.4/5.0GHz.

The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECER 118 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.

The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo, QZSS, and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.

Key Features:
Low profile
4x4 MiMo 4G/5G LTE
Up to 6x6 MiMo WiFi 2.4/5.0GHz
617-960 / 1710-6000MHz
Optional GPS/GNSS with advanced B13/14 filtering
Flame retardant materials: UNECER 118 and EN45545-2 compliant cables & flame retardant Halogen-free radome
Certified to IP69K for ingress protection and IK10 for impact resistance
Environmentally compliant: Meets RoHS, REACH, PVC free

Application:
Police
Ambulance
Fire and Rescue Services
Public Bus
Transportation
Utility

Contact Panorama Antennas and find out more.
http://bit.ly/2zYDK0G

-------------------------------------------------------------------------------------------------------------------------
Product Details: https://bit.ly/36FjxzT
Follow us on LinkedIn: https://www.linkedin.com/company/pano...

0:00 Panorama Antennas
0:06 MAKO 5G Dome Antenna
0:14 Features
0:24 Benefits
0:36 Cable Tails
0:44 Application
0:53 Product Variants
1:05 Outro
