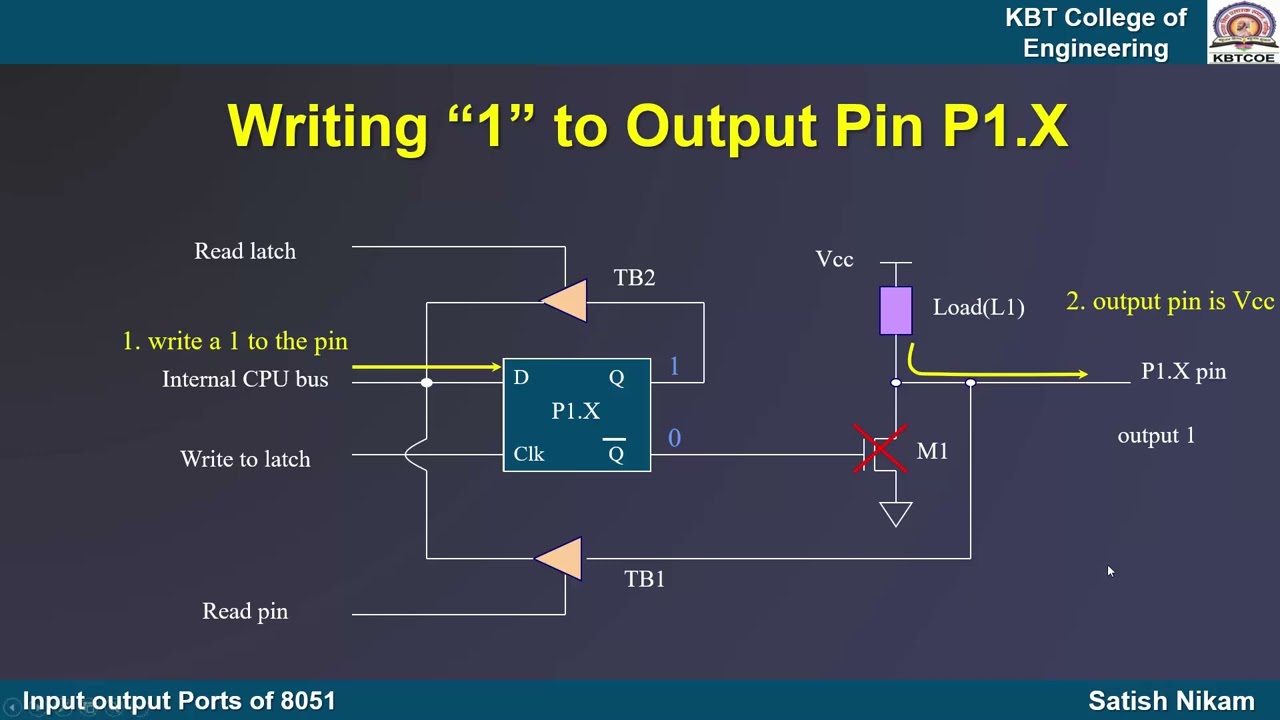

Input and Output port Structure of 8051 Microcontroller
Автор: EngineeringSguruji
Загружено: 2023-04-16
Просмотров: 3470
Описание:
Lecture Series on 8051 Microcontroller
Lecture 13: Input and Output port Structure of 8051 Microcontroller
In this video, we're going to discuss the Input and Output port Structure of 8051 Microcontroller. When an I/O pin is configured as an input, it can be used to read the state of an external device. & When an I/O pin is configured as an output, it can be used to control the state of an external device.
By understanding the hardware structure of a pin we can understand how to configure this pin as input pin or output pin
Reference: 1) The 8051 Microcontroller & Embedded Systems by M. A. Mazidi & J. G. Mazidi & Mckinlay, Pearson Prentice Hall. 2) The 8051 Microcontroller Architecture, Programming and Applications by Kenneth J. Ayala , Penram International Publications.
You can complete the 8051 Microcontroller course by clicking on the link: https://www.youtube.com/watch?v=xcvQq...
You can also complete the Digital Electronics course by using the link: • Combinational Logic Circuits
If you want to learn more about 8051 Microcontroller you can visit my website. Link:
https://engineeringsguruji.wordpress....
