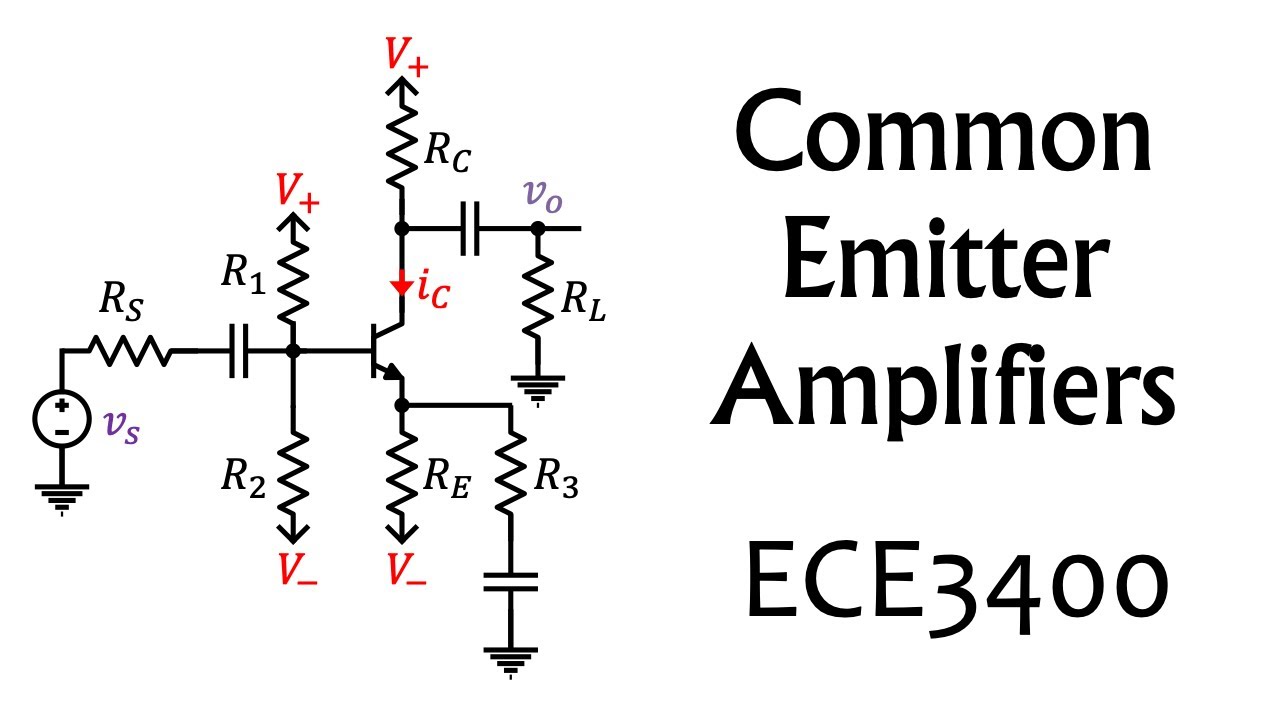

ECE3400 Lecture 13: Common Emitter Amplifiers (Analog Electronics, Georgia Tech course)
Автор: Lantertronics
Загружено: 2022-09-15
Просмотров: 4128
Описание:
Reference: https://leachlegacy.ece.gatech.edu/ec...
Support this channel via a special purpose donation to the Georgia Tech Foundation (GTF210000920), earmarked for my work: • [OLD] Support This Channel via a Special P...
0:00 -- Introduction
0:48 -- Common emitter amplifier
3:53 -- Bias calculations
4:49 -- Small-signal parameters
5:26 -- Thevenin equivalents looking out
6:53 -- Gain (collector-focused solution)
10:49 -- Gm and ric formulas
11:43 -- Output impedance
13:59 -- Input impedance
15:59 -- Gain (base-focused solution)
18:30 -- Gain (emitter-focused solution)
20:27 -- Special cases
23:00 -- Elegance of our approach
23:38 -- Alternate emitter scheme
#bjt
