LD CAD Solutions - Feed Scroll Generator - Precise Bottle Pitch
Автор: Youtube - LD CAD Solutions
Загружено: 2016-03-07
Просмотров: 5678
Описание:
PLEASE NOTE: This video shows V1 of the Feed Scroll Generator App for Inventor. Please see this tutorial for latest version V2.
• Create Bottle Feed Screws With Autodesk In...
Email [email protected] for more information.
Instruction tutorial for the Feed Scroll Generator Addin for Autodesk Inventor. It allows automatic creation of smoothly surfaced bottle feed screw geometry, to your desired tolerance.

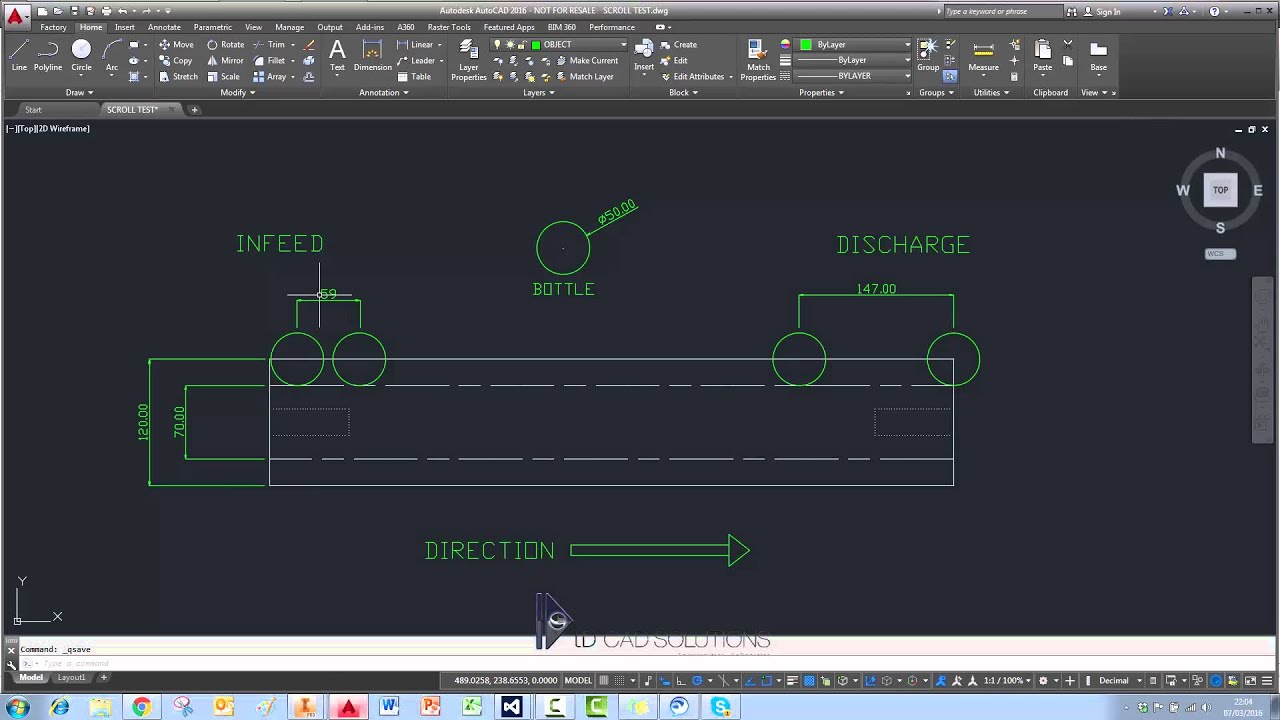

This video shows how you can create shafts with precise bottle pitches. We use an example of a shaft with 59mm start pitch, and 147mm end pitch for the bottles.
Other functions available in the Feed Scroll Generator app:
Variable pitch for bottles.
Bottle rotation (clockwise and anti-clockwise).
Forward or reverse shaft rotation.
Sketch any desired bottle profile using Inventor sketch tools.
One click 'create'
Quick geometry preview.
Simulation of bottles moving along shaft.
Allows creation of previously impossible geometry in Inventor.
Please also see introduction video for the Addin here:
• Видео
Company website:
http://ldcadsolutions.weebly.com/
Thanks for checking us out!
