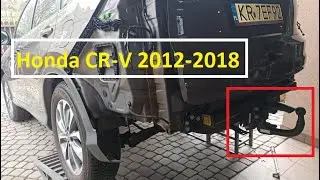

2013 Honda CR-V | U-Haul Trailer Hitch Installation

Описание: 2013 Honda CR-V Trailer Hitch installation with the Curt 13119. This video shows step-by-step instructions from a U-Haul Professional Hitch Installer so you can do it yourself.

To purchase this trailer hitch and other towing accessories for your 2013 Honda CR-V, visit https://www.uhaul.com/trailer-hitches...

1. Remove (10) fasteners and lower underbody panel.
2. Lower exhaust by removing (2) rubber isolators from the hangers attached to the exhaust.
(See RUBBER ISOLATOR REMOVAL DIAGRAM)
3. Mark and trim underbody panel. Reattach underbody panel using fasteners removed in Step (1).
Note: Dimensions are approximate, confirm fit prior to trimming. Use ribs of the underbody panel
as cutting guides. (See Underbody panel trim diagram)
4. Insert 7/16" U-bolt through tow hook, as shown.
5. Raise hitch into position and secure using 7/16" flange nuts to the U-bolt and 10mm bolts with 7/16"
conical toothed washers to the weldnuts in the frame rails. (See WELDNUT CLEANING DIAGRAM)
6. Torque all 7/16" hardware to 25 ft-lbs.
Torque all 10mm hardware to 48 ft-lbs.
7. Raise exhaust back into position.

0:00 Intro
0:18 Tool list
0:24 Trim underbody panel
2:01 Lower exhaust
2:42 Raise hitch into place
3:32 Install hardware
4:33 Torque bolts
4:56 Reinstall exhaust
5:01 Hitch details and measurements
5:17 Outro
