Drawing Angles and Triangles with TikZ (Unlocking LaTeX Graphics - Video 37)

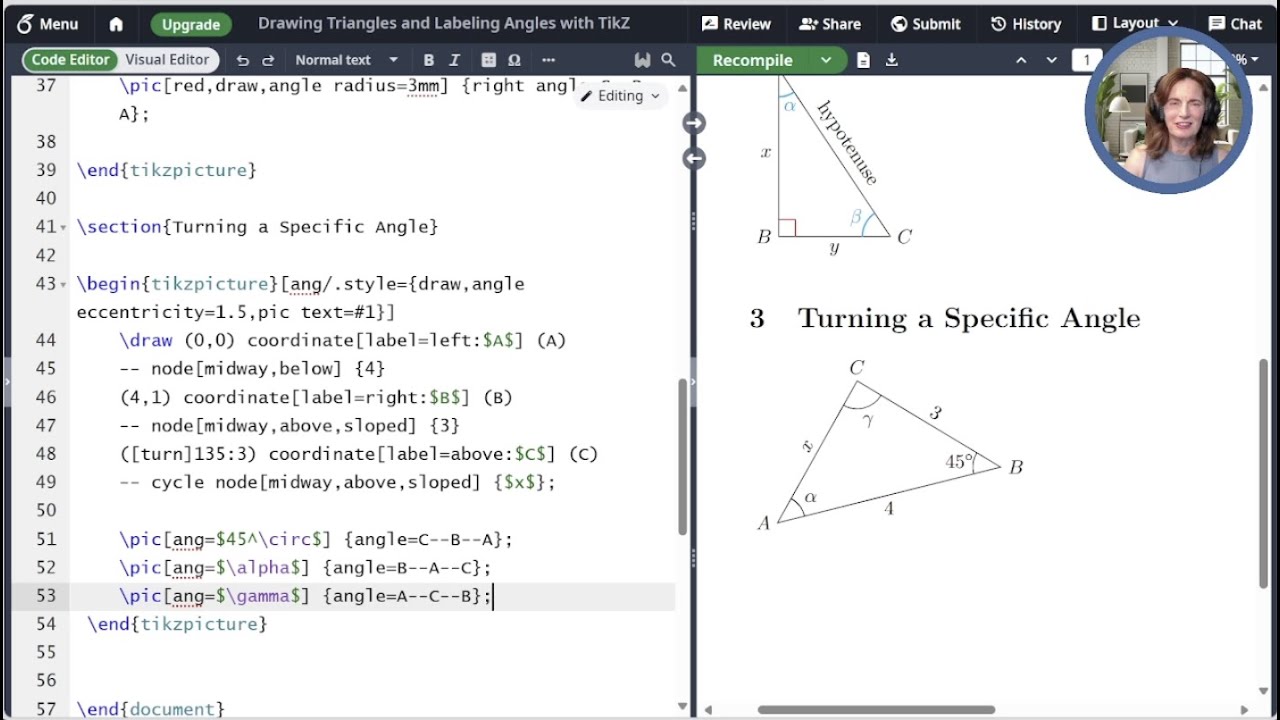

Описание: In this episode of Unlocking LaTeX Graphics, applied mathematician Tammy Kolda demonstrates how to draw angles and triangles using TikZ. Inspired by a viewer suggestion, she meticulously explains the process of utilizing the angles TikZ library for drawing and labeling angles in LaTeX. Tammy covers essential commands, including the use of coordinates, labels, and the angle pic function. She also shows how to label angles in triangles and creates a right-angle pic. Finally, she illustrates how to create a triangle with a specified angle using polar coordinates. This tutorial is packed with detailed instructions and is geared towards enhancing your LaTeX skills. Be sure to like, subscribe, and check out Tammy's book, Unlocking LaTeX Graphics, for more insights.

00:00 Welcome & Today's Topic
00:28 Document Preamble
00:51 Setup for Drawing an Angle
01:17 Aside: Labeling a Coordinate
02:08 Drawing our First Angle
03:20 Angle Radius Option
03:45 Adding a Label
04:06 Label Placement
05:00 Labeling Angles and Edges of a Triangle
06:48 Right Angles
07:18 Creating a Triangle with a Specified Angle
09:59 Thanks for Watching

Key terms: LaTeX, TikZ, pic, angle, right angle, turn, coordinate, polar coordinates
