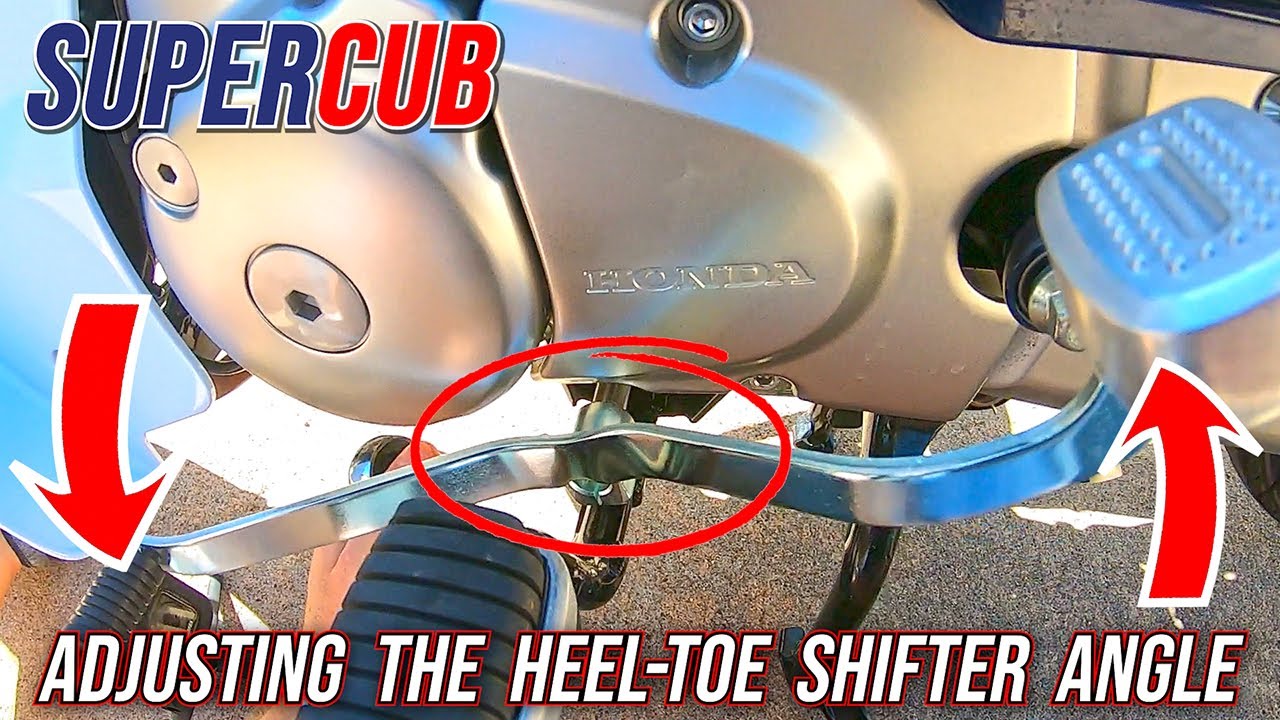

SUPERCUB: 2019 Honda Super Cub // Heel-Toe Shift Lever Adjustment
Автор: QuasiMotard
Загружено: 2019-04-11
Просмотров: 15200
Описание:
A viewer asked if I could document the process of adjusting the heel-toe shifter angle, so this is that! The process is really simple, and you only need a 10mm wrench/socket and about 2-3 minutes to make the adjustment.
Adjustment procedure:
1. Remove the pinch bolt on the bottom-front of the shift yoke;
2. Slide the shifter toward you to clear the shaft splines, and then rotate counterclockwise 1-2 splines (depending on your preference);
3. Slide the shift yoke about half-way back onto the shaft and re-insert the pinch bolt... be sure to test that you are engaging the indention on the shaft with the pinch bolt;
4. Tighten the pinch bolt until it is very snug, but not overly tight... the bolt threads should be roughly flush with the back of the shifter's mounting collar;
5. Sit on the bike and test the shift lever to see it works better for you... readjust as necessary!
--
QM
[email protected]
#honda #cub #minimoto
2019 Honda Super Cub C125
C125A
Super Cub shift lever adjustment
Super Cub heel toe shifter
