Wiring a Control with One Black, One Red, One Blue, One White Wire (3-Way with a Pico Remote)

Описание: Welcome to our channel! In this video, we'll guide you through the process of installing Lutron dimmers and switches that have a black wire, red wire, blue wire and white wire coming out of the device.

The following Lutron dimmers and switches have these wires and can be used with a Pico remote:
• PD-10NXD
• PD-6ANS and PD-5ANS
• DVRF-5NS

Before You Begin
Ensure your safety by turning off the power at the circuit breaker before installation.

Sections Covered
• Hardware and Tools Needed: We mention what tools will be needed at the start of the video to ensure you're fully prepared for the installation process.

• Installing the Lutron dimmer or switch: We'll show you how to install the device at the first location and ensure all the right wire connections are made. The straightforward guidance will walk you through the installation process effortlessly.

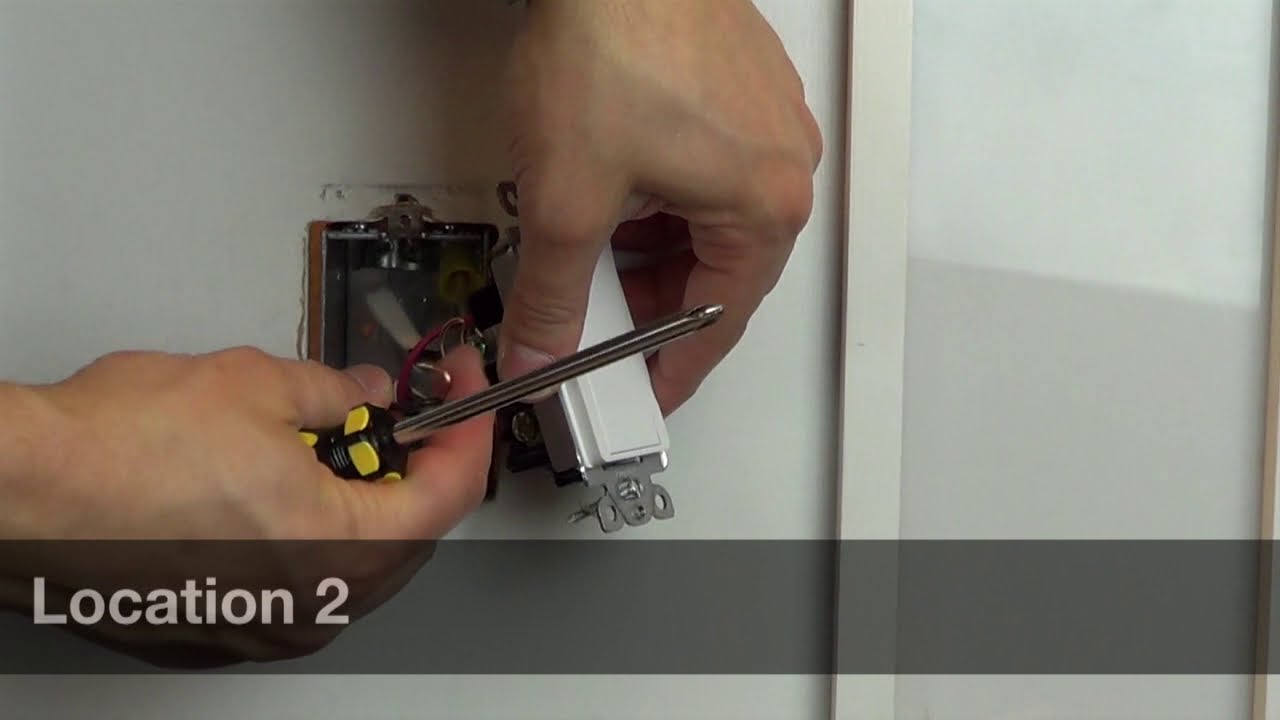

• Installing the Pico Remote: We demonstrate how to connect the wires together at the second location, mount the PICO-WBX-ADAPT bracket to the wall, and insert the Pico remote on the bracket.


We offer a comprehensive installation tool called the Wiring Wizard. Check it out here: https://webtools.lutron.com/wiringwiz...


Whether you're a DIY enthusiast or a professional installer, this video provides all the information you need to install your dimmers and switches efficiently and safely.

If you find this video helpful, don't forget to like, share, and subscribe for more tutorials and troubleshooting tips. Thanks for watching!
