How To Change the Walking Belt of Your Treadmill

Описание: TOOLS

Slotted screwdriver
Phillips screwdriver
5/32 Allen tool
5/16 Allen tool
9/16 socket
STEPS

Start removing the lower side handle covers unscrewing the hardware with the Phillips screwdriver
Then use the slotted screwdriver as a help to complete the task
Take off the motor cover removing the four screws with the Phillips screwdriver
Be careful with the front cover when removing the motor cover, it is attached to it
With a 5/16 Allen tool misalign the rear roller to de-stress the walking belt
Make sure the walking belt is de-stressed
With a 9/16 socket unscrew the front roller screw
Use blocking pliers to loosen the tensioner
Remove the driver belt from its roller
Lift with caution the front roller
Repeat the step for the rear roller
Remove the right front cover and de-attached the spring
Unscrew the four screws of the running deck and pull out it
Have ready by your side the new walking belt
Put the new walking belt around the running deck

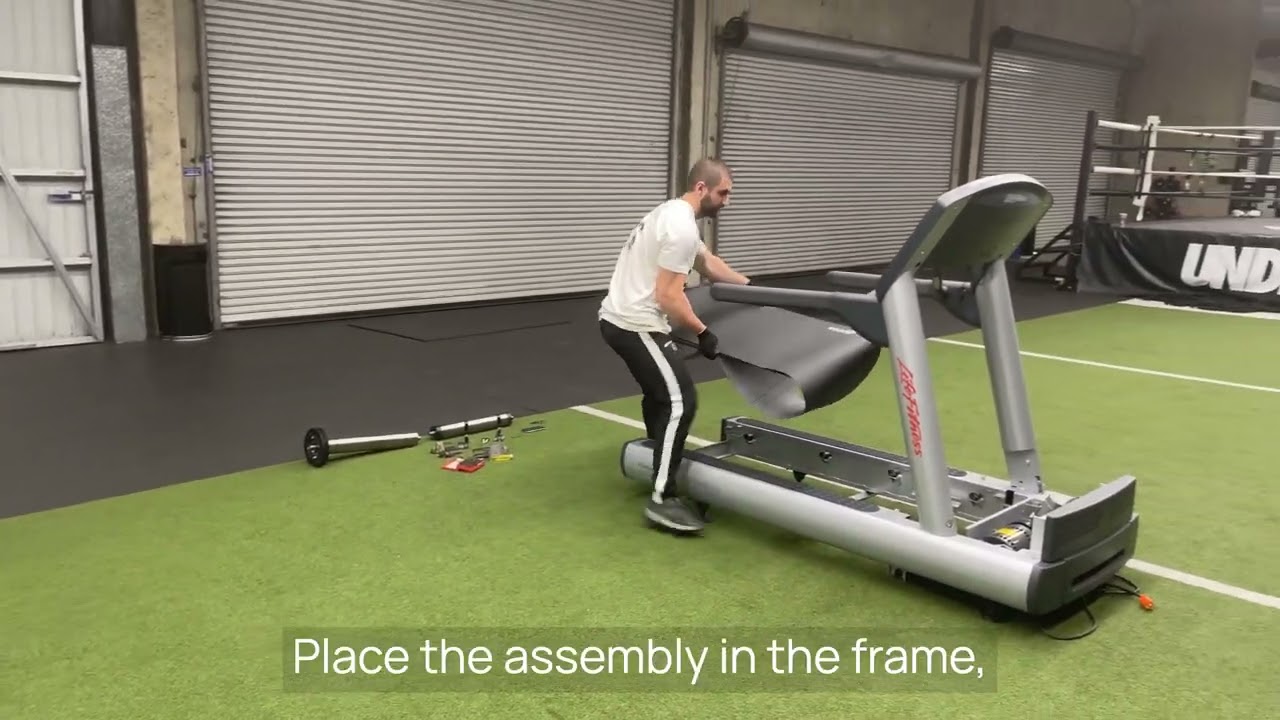

Place the assembly in the frame, make sure all screws are aligned
Tight all four screws
Lay the front roller on its place, make sure the driver belt is around the roller
Be sure the axis of the roller fits in the frame’s hole
Set the rear roller on its place
Tight the roller equally from both sides to make sure is fully tensioned
Turn on the treadmill and set it to 3.0 MPH speed and make sure the walking belt is centered
Your CLST treadmill is ready!
