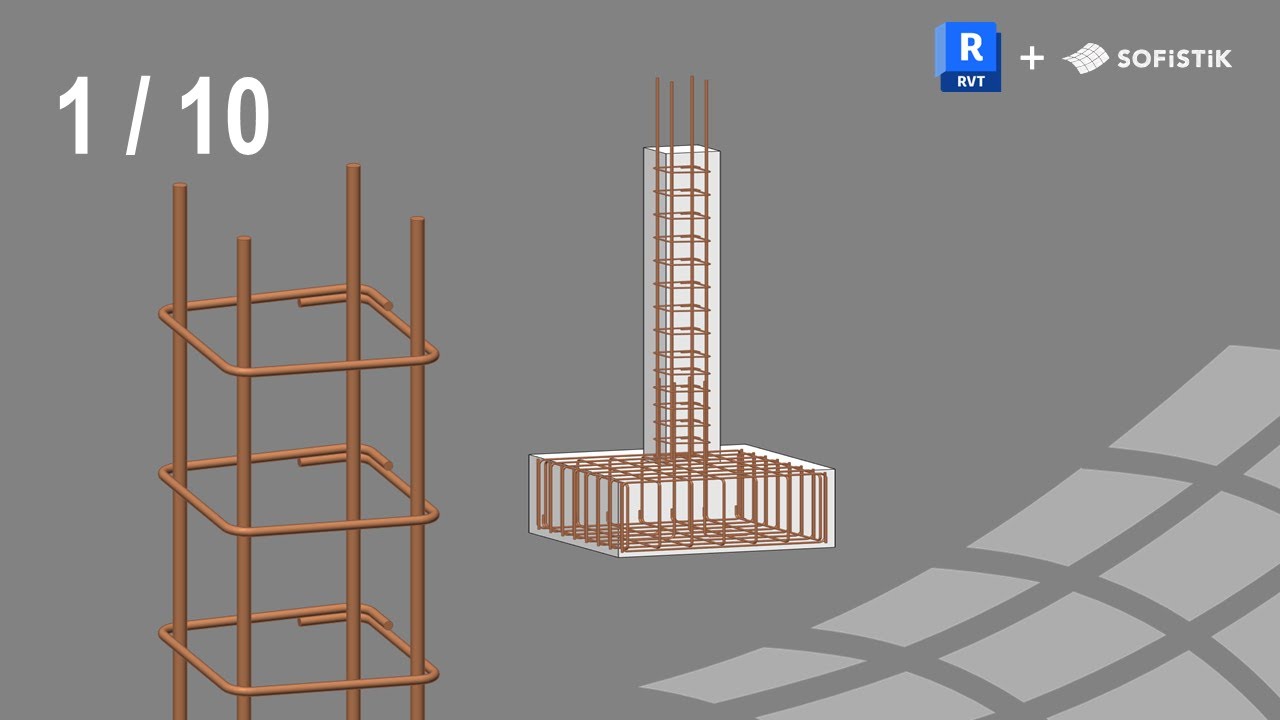

Revit + SOFiSTiK Reinforcement 1/10 - Basic Modeling

Описание: ♦Download the Project: https://www.sofistik.de/documentation...

In this video you will learn the first steps of creating Reinforcements in Revit and SOFiSTiK. We start with Stirrups, that we create in a simple way and adjust it to more complex Rebar Sets. The rebar shapes are based on the Eurocode. Next are longitudinal Rebars, including the Placement Orientation options and Rebar Set rules. Once all reinforcement is done and improved with SOFiSTiK for one column, we use Revit tools to propagate our work to other members.


Chapters:
00:00 Intro
00:28 Create Stirrups
01:31 Manipulating Stirrups
02:59 Create Longitudinal Rebars
03:51 Adjusting Longitudinal Rebars
04:36 Copy Rebar to another Member
