Reconditioning your car battery (desulfator) Part 2 - The circuit design

Описание: This is part 2 of my series of videos pertaining to reviving old car batteries. In this video I will show you where I got the schematic for building the desulfator and once again show you my finished desulfator circuit up close.

Here is the part list for newark.com :

IRF9Z34NLPBF - P channel mosfet - 1
MR856RLG - Fast recovery diode - 1
1N4148 - switching diode - 1
MCMF0W4FF3301A50 - 3.3kohm resistor - 1
CMF1/41101FLFTR - 1,1kohm resistor - 1
MCMF0W4FF6802A50 - 68kohm resistor - 1
MCMF0W4FF1004A50 - 1mohm resistor - 1
ELXZ350ELL101MF15D - electrolytic capacitor 100uf - 2
MC0805N102J500A2.54MM - ceramic capacitor 1000pf - 1
MCMLR100V103KX7R - ceramic capacitor 0.01uf - 2
MC0805B473K500A2.54MM - ceramic capacitor 0.047uf - 1
2100HT-102H-RC - inductor 1000uh - 1
PM2120-221K-RC - inductor 220uh - 1
MF-RX110 - ptc reset fuse - 1
DILB8P-223TLF - 8 pin dip socket - 1
SA555PG4 - 555 timer chip - 1

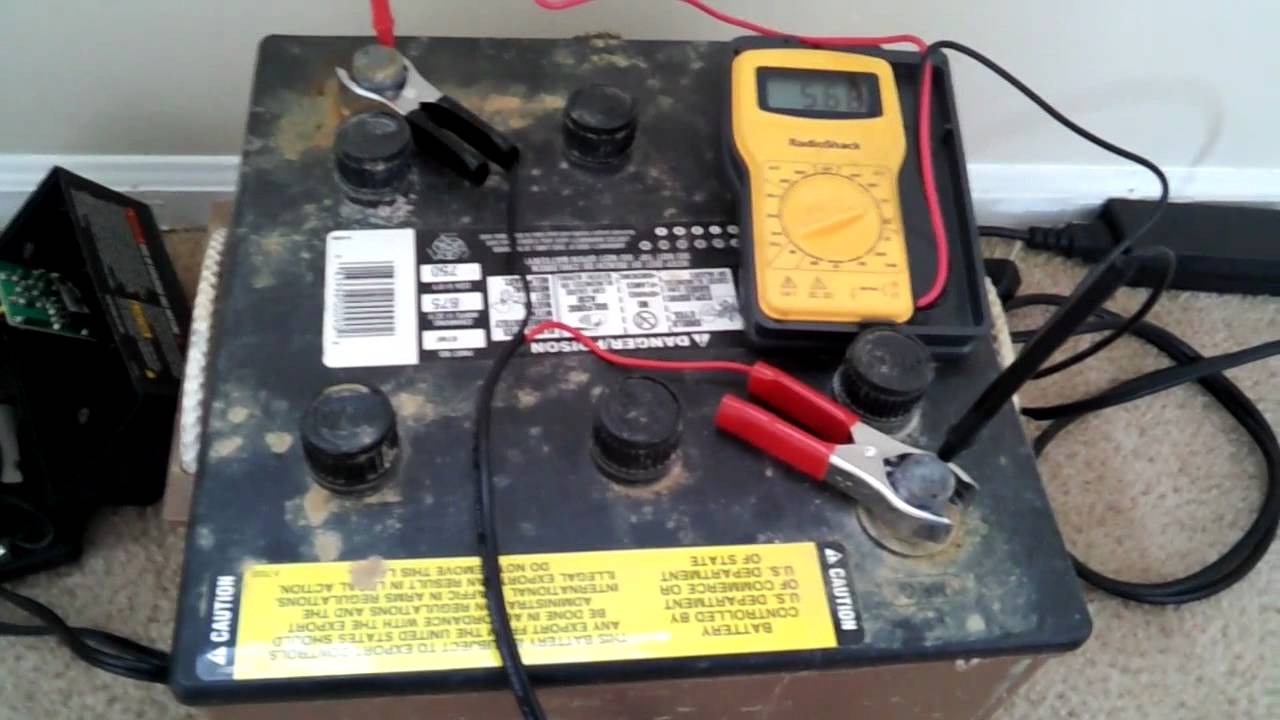

Here is the link to part 1 which is the main overview of the desulfator:
   • Reconditioning your car battery (desulfato...

Here is the link to part 3 which shows how to connect the led to the circuit to show you that it is working:
   • Reconditioning your car battery (desulfato...

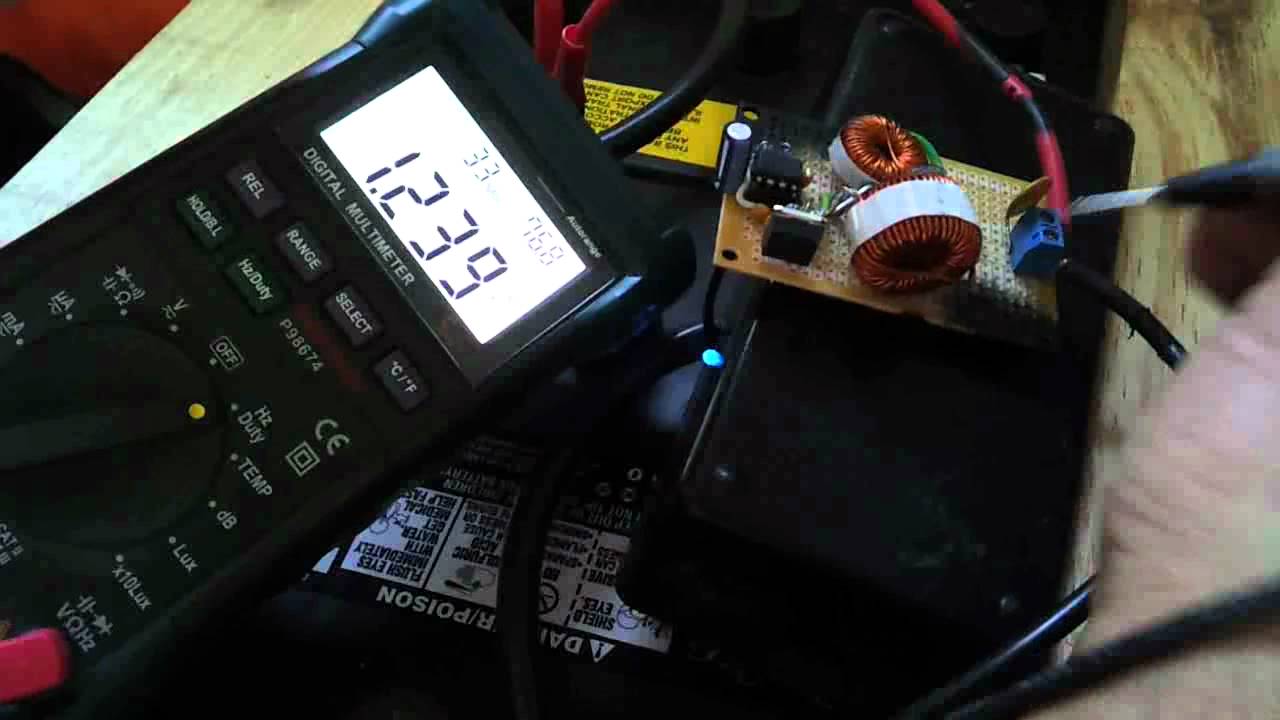

Here is the link to part 4 which shows some basic troubleshooting points on the circuit:
   • Reconditioning your car battery (desulfato...
