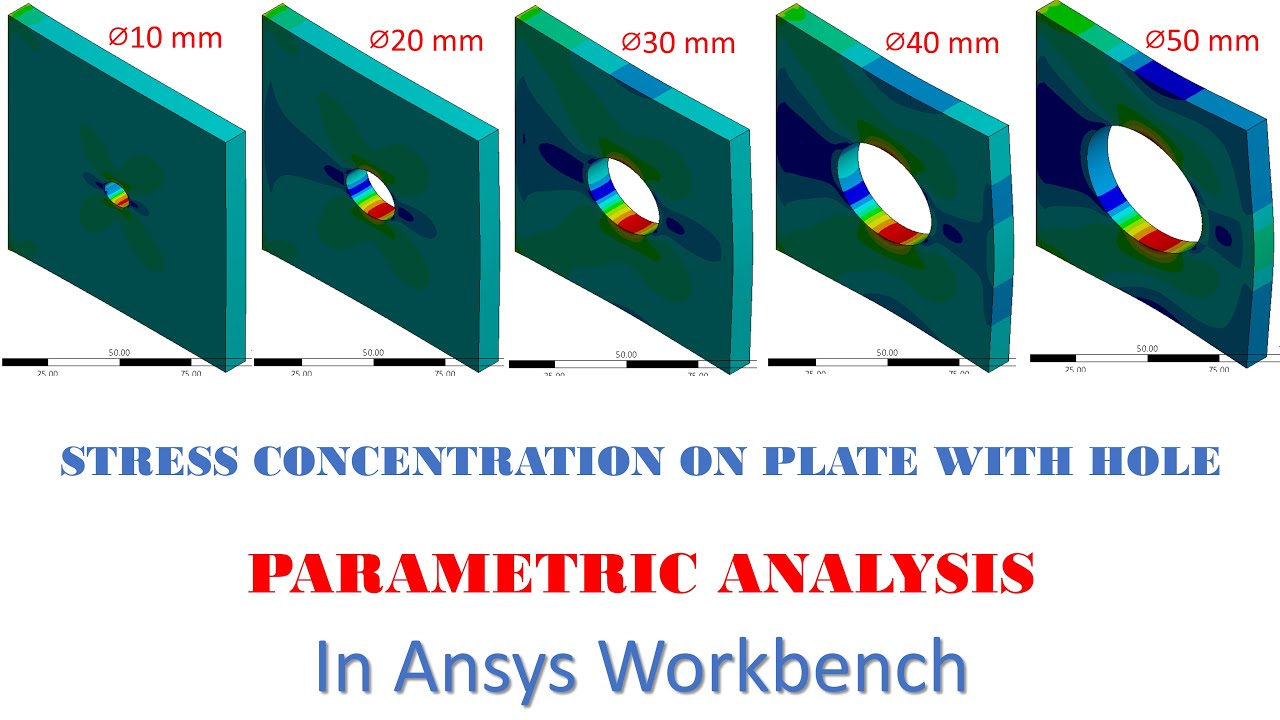

Ansys Workbench Tutorial | Parametric Analysis | stress analysis of a plate with a circular hole
Автор: MECH Tech Simulations
Загружено: 2022-05-13
Просмотров: 7237
Описание:
Can you drop me a review/rating?: https://g.page/r/CdbyGHRh7cdGEBM/review
/ mech-tech-simulations
/ mech.tech.simulations
Download the files from my website: https://udangudioriginals.com/files
WhatsApp: +91 9488469801
Timestamps:
00:00 Intro
00:07 Open ANSYS Workbench
00:20 Create Geometry
01:03 Create Hole in Plate
02:10 Close Design Modeler
02:42 Create Mesh & Boundary Conditions
04:00 Define Deformation & Stress
04:15 Solve Problem
05:33 Set Input & Output Parameters
06:54 Update Design Points
07:40 Obtain Results
08:28 View Results for Different Hole Sizes
09:05 Export Table as CSV
This tutorial includes how to do ansys static structural
Meshing
Applying boundary conditions
Applying loading conditions
Selection filter Stress analysis
Deformation analysis
Contours
Setting up the parameters [Input and output parameters]
Exporting the data as csv
Saving results as excel file
