Analog Electronics Circuits Session 11a: High frequency response of MOSFET amplifier

Описание: 📘 Analog Electronics Circuits – Session 11a
In this session, we explore the high-frequency behavior of MOSFET amplifiers, a crucial topic in analog circuit design.
🔍 Topics Covered:
1️⃣ High-frequency model of MOSFET

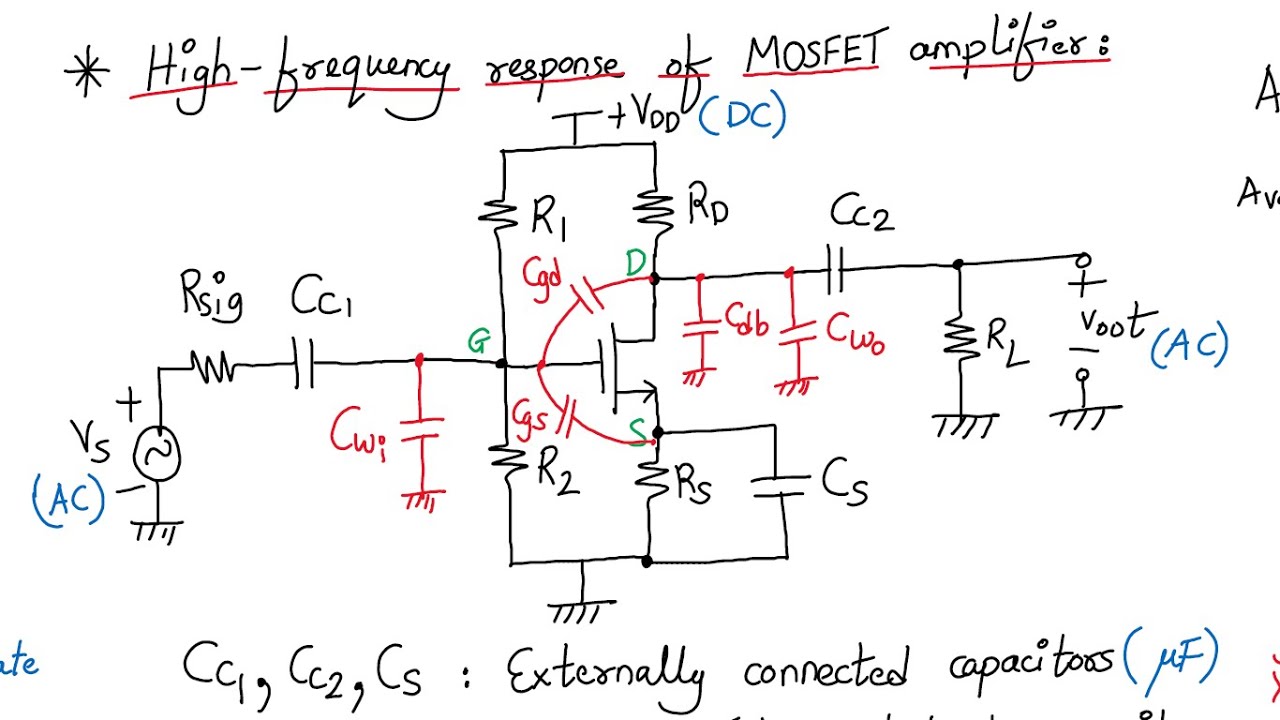

2️⃣ CS amplifier circuit with parasitic and wiring capacitances
3️⃣ High-frequency small signal equivalent circuit
4️⃣ Deriving the higher cutoff frequency
5️⃣ Frequency response plot for the MOSFET amplifier
This lecture is ideal for electronics engineering students focusing on analog design and frequency-domain analysis.
