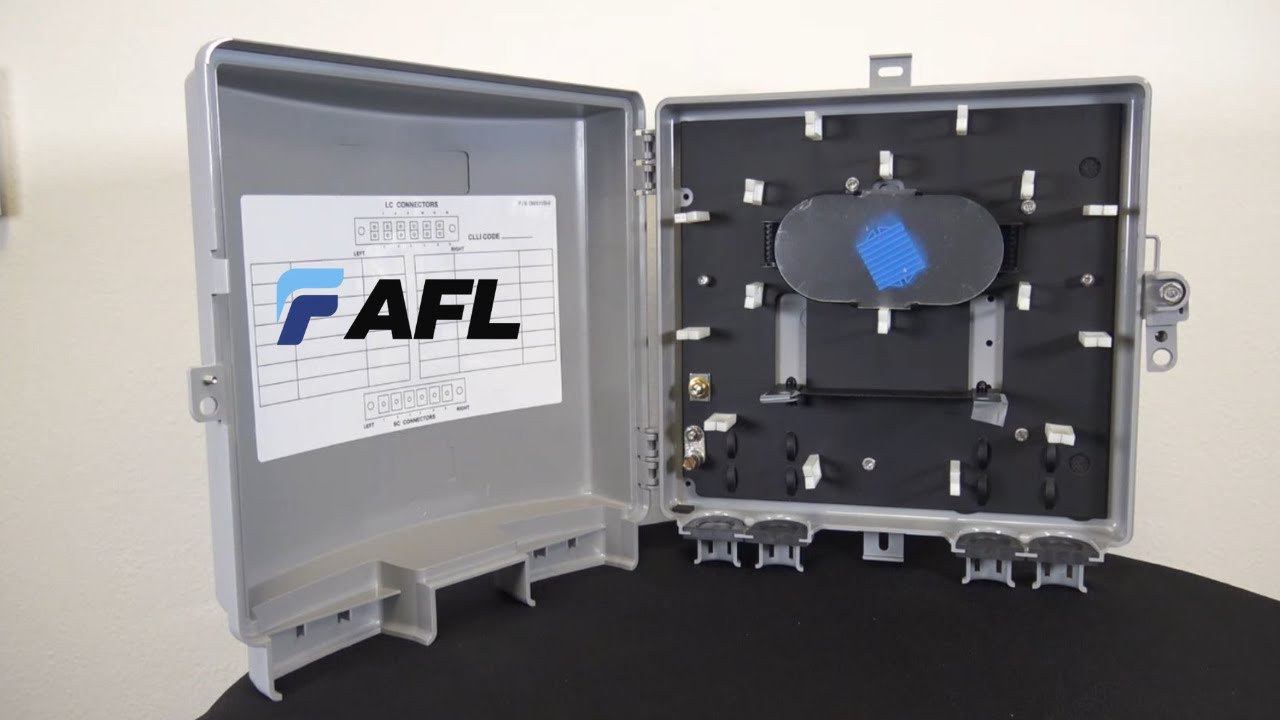

AFL Telecommunications OPN-760XL Indoor/Outdoor 2-Panel Fiber Optic Cable Demarcation Box

Описание: The AFL OptiNID OPN-760XL https://www.discount-low-voltage.com/... is an optical demarcation box designed for use in either indoor or outdoor environments. It is capable of housing up to 24 bulkhead adapters in two 118 LGX compatible adapter plates (not included) and is equipped with a splice tray (LL-2425), which holds up to 24 single fusion splices. Compatible fiber adapter plates can be found using the link at the bottom of this description. The OPN-760XL can be either wall or pole-mounted.

Features:

• Capacity for up to two 118 LGX compatible adapter plates
• Rugged weather-resistant thermoplastic alloy
• Self-latching, hinged cover design allows easy access without loose parts
• Slip-in grommets allow pre-connectorized cable deployment
• Provider override is provided so that technician can override customer lock

Specifications:

Dielectric Strength: Minimum 2500 Vrms for 1 minute
High Temperature Storage/Mold Stress °F (°C): 14 days at 159 (70.55)
Temperature Cycling with Humidity °F (°C): 150 day cycling from 40-140 (4.44-60) with 95% RH
Impact Test °F (°C): -40 (-40), 5*/lbs on all external surfaces
Drop Test °F (°C): -40 (-40), 5* (12.7 cm) onto concrete surface 4 times
Rain: 24 hours at 10 psi
UV Resistance (Days Exposed): 60 per ASTM-G26-84
Salt Fog (Days Exposed): 60 per ASTM-BLL7-90
Flammability: UL94-5V
Chemical Resistance, 30 Days at 100 °F and 95% RH Subject to: Resists chipping and/or cracking when subject to: house paint, wasp spray, sulfuric acid, kerosene and sodium hydroxide
Material: UL® listed flame retardant thermoplastic alloy
Dimensions (H x W x D) in. (cm): 13 x 13 x 3.75 (32.5 x 32.5 x 9.5)
Cable Entrances in. (cm) diameter—Input: 4 x 0.875 (2.2)—3/4" conduit
Covers: Standard – molded-in snap finger and 3/8" hex head fastener

LGX Compatible Panels - https://www.discount-low-voltage.com/...

Pipe Fitting Transition Kit - https://www.discount-low-voltage.com/...

Pole Mounting Kit for OPN-760XL - https://www.discount-low-voltage.com/...
