How to Read/Find RPMB Key from eMMC Chip (Full Tutorial)

Описание: This is an essential, must-watch tutorial for any electronics repair technician working on modern main boards! This video provides a detailed, step-by-step guide on how to locate, read, and secure the Replay Protected Memory Block (RPMB) Key from an eMMC chip.

The RPMB is a critical security feature, and correctly handling its unique key is essential for successful eMMC programming, re-balling, or replacement in devices like TVs, phones, and other smart electronics. Failure to retrieve this key can lead to security lockouts or board malfunctions after the chip replacement.

Watch the full tutorial to master this advanced technique and ensure your repair work is secure and successful!

In this tutorial, you will master:
The crucial role of the RPMB Key in the eMMC security partition.
The exact step-by-step process for reading and extracting the key data.
The proper tools and software settings required for a successful key dump.
How to handle the RPMB area when working with a new or replacement eMMC chip.
Advanced tips for safe data handling during component-level repair.
Video Timestamps
Time Chapter Title
00:00 Introduction: Why the RPMB Key is Crucial for eMMC Chips
00:05 Power-On Test: Verifying the Board is Working Before Chip Removal
01:38 Preparing the Original eMMC: Desoldering and Rationale for Backup
02:33 Using the E-Tool: Identifying and Reading the Original Chip

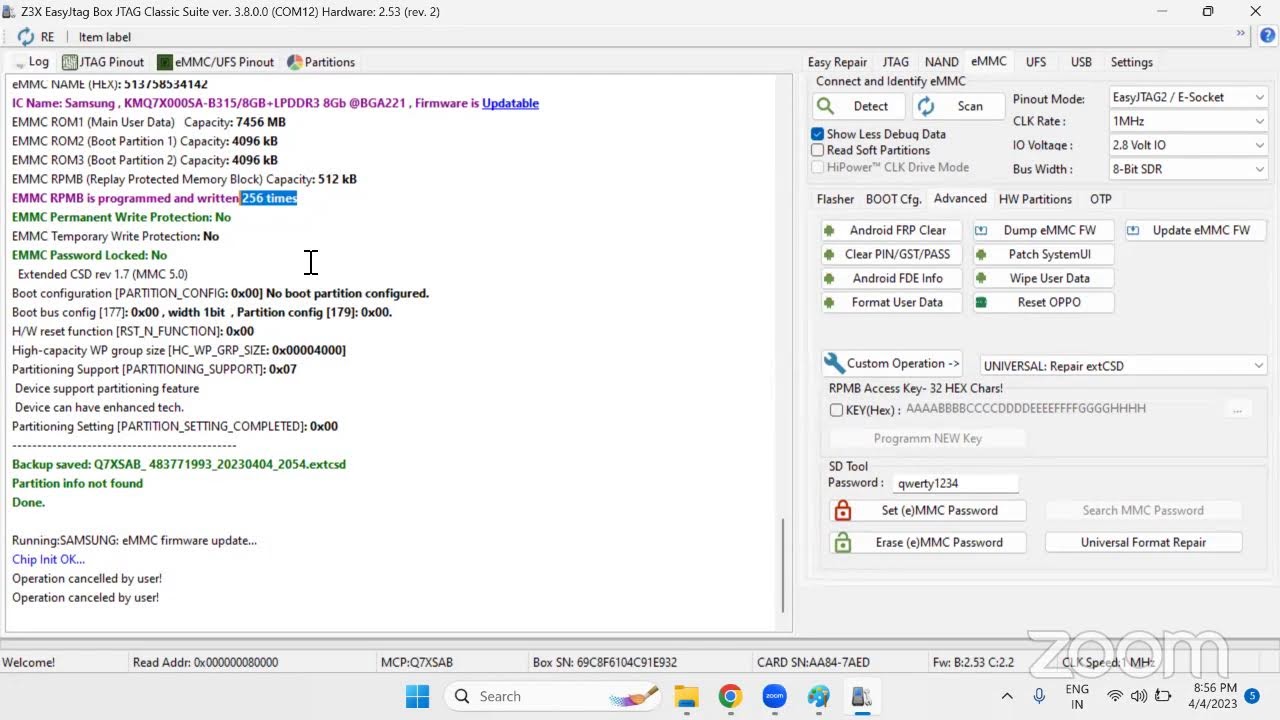

03:58 CRITICAL STEP: Locating and Copying the Unique RPMB Key
05:26 Switching to a New/Replacement eMMC Chip for Programming
05:40 Software Update: Switching to a Programmer Version that Supports RPMB Key Write
06:35 Preparing the New Chip: Erasing/Cleaning the Special Task Area
07:38 KEY STEP: Entering the Copied RPMB Key and Device Name
09:05 FINAL WRITE: Programming the RPMB Key Provisioning to the New Chip
09:52 Analyzing the New Chip: Verifying the RPMB Counter Status
10:14 Reinstalling Older Software for Faster Data Writing (User/Boot Files)
11:22 Full Data Write Process on the New eMMC Chip
12:24 Soldering the New Programmed eMMC Chip Back onto the Main Board
13:08 Final Test: Powering On the Repaired Main Board
13:30 Successful Result: Demonstrating a Working TV with the New Chip


Don't forget to like this video and subscribe for more expert content!
