Stronger motor mount for C-Beam: Cnc router blog 5
Автор: ASCII
Загружено: 2016-03-28
Просмотров: 7065
Описание:

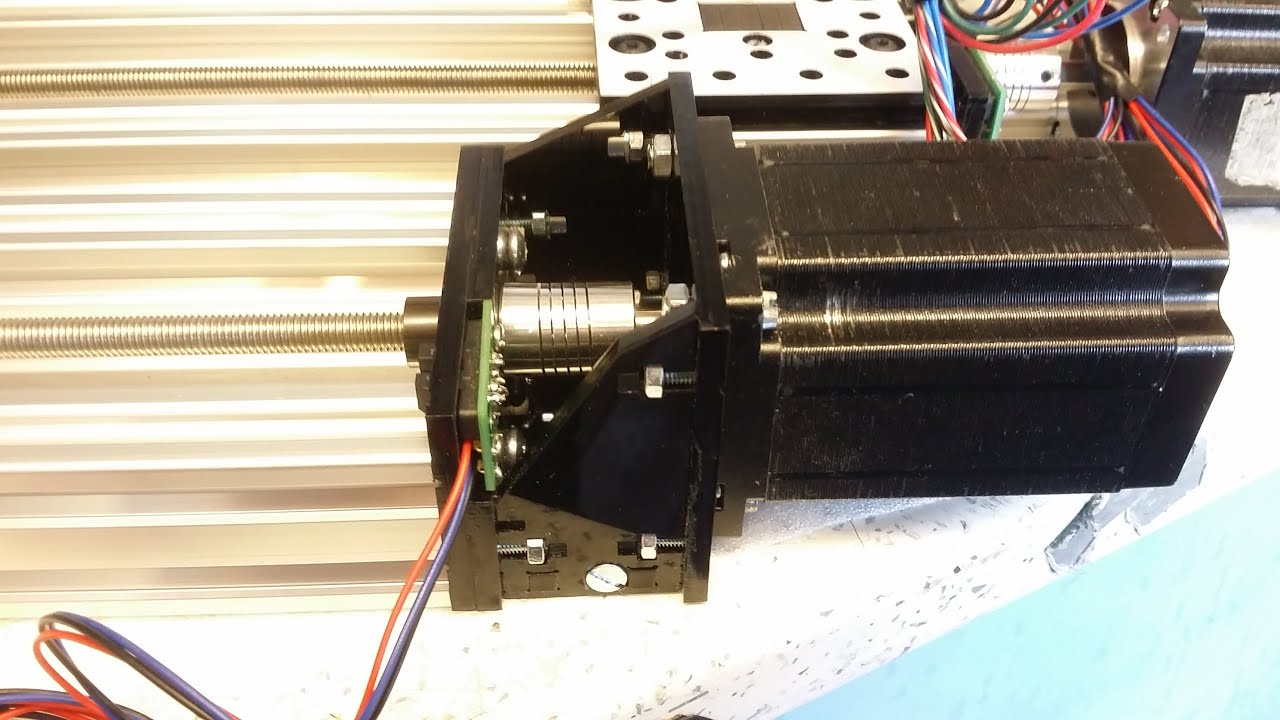

Step by step build of my new motor mount, which is compatible with the Openbuilds C-beam linear actuator. It's far stronger, suitable for larger motors, and makes it a lot easier to line up the motor with the shaft coupler.
The SketchUp file is available here: http://birchenough.co.uk/stronger-mot...
Parts list:
Lasercut acrylic parts (from SketchUp file)
7 x M5 x 16mm bolts (preferably hex head, as the head should be as small as possible)
1 x M5 x 16mm countersunk bolt
4 x M5 nuts
9 x M4 x 16mm bolts
9 x M4 nuts
1 x M3 x 10mm bolt
Related / optional parts:
V1 RepRap opto-endstop
shaft coupler to fit 8mm threaded rod and motor shaft
NEMA 23 stepper motor
