Detec Roof Leak Detection System Full Video Demonstration

Описание: Find out more: www.DetecSystems.com

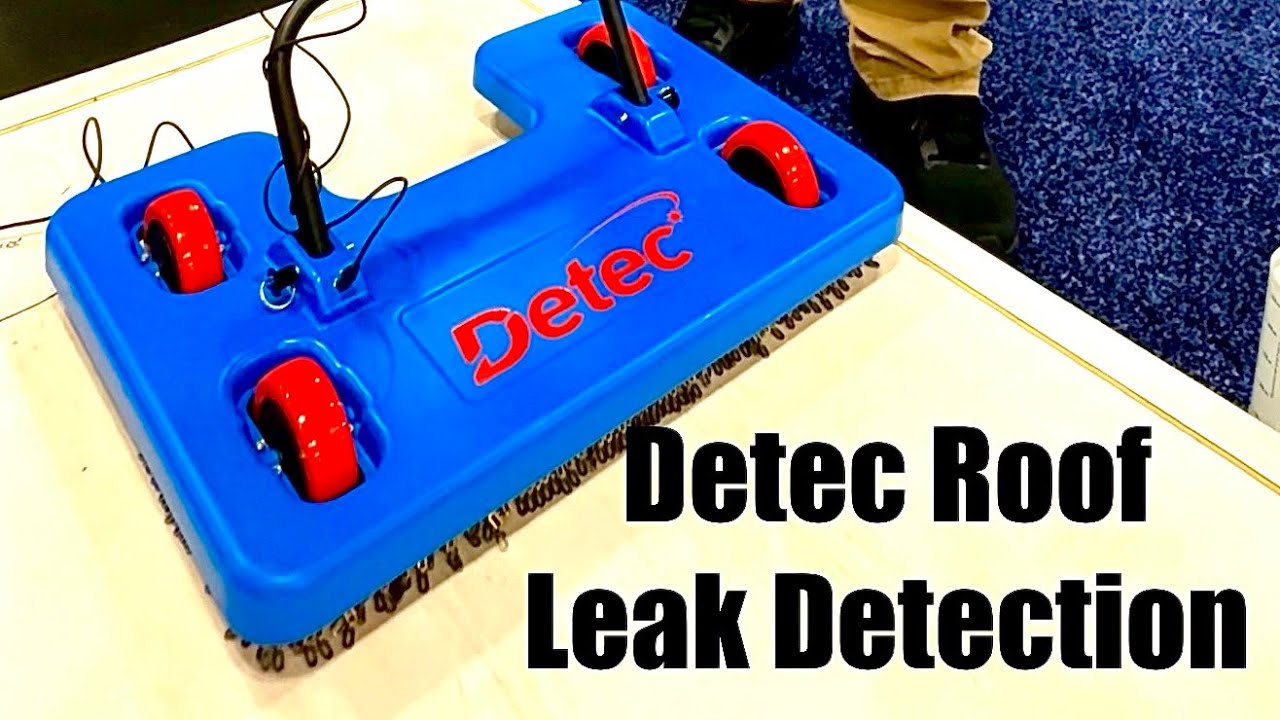

Detec’s IntegriScan is the most advanced and accurate Electronic Leak Detection (ELD) testing method available. The portable IntegriScan confirms waterproofing membranes are free of breaches, holes, or seam voids during construction and can be used to locate active leaks in existing buildings. The low voltage IntegriScan scanning platform tests horizontals and is the only method capable of testing semi-conductive membranes including black EPDM! The low voltage IntegriScan vertical roller (aka VSU) tests non-conductive verticals, horizontals, transitions and details. The IntegriScan complies with ASTM Practice D8231 and ASTM Guide D7877. The IntegriScan is also the only FM Approved Electronic Leak Detection testing equipment.

FEATURES of the IntegriScan Waterproof Membrane Integrity Testing Service
Works on nearly all membranes and is the only ELD testing option for semi-conductive waterproofing's and conductive membranes such as black EPDM
The only low voltage ELD service that can reliably perform testing on vertical surfaces
Complies with ASTM D8231-19 (Standard Practice for the Use of a Low Voltage Electronic Scanning System for Detecting and Locating Breaches in Roofing and Waterproof Membranes) as well as ASTM Guide D7877-14
The only FM Approved ELD testing equipment
Verifies the water tightness of roofing and waterproofing membranes
The most advanced, accurate, reliable, and cost-effective ELD testing method available
The scanning platform and vertical roller are used in conjunction for testing all areas including horizontals, verticals transitions and details.
Can test up to 40,000 square feet per day
Pinpoints breaches during membrane installation so repairs can be made immediately
Minimal setup time: NO perimeter wire required; NO need to isolate penetrations
Tests conventional assemblies with TruGround® Conductive Primer directly under the membrane
Can be used for forensic testing on existing roofs
Provides a more thorough overall assessment than electric field vector mapping (aka EFVM)
Superior alternative to flood testing
Manufactured in the USA

The PermaScan System:
Ensures the customer benefits from the longest possible service life of the roof
Minimizes risk and reduces maintenance costs over time
Produces timely detection, decreasing potential damage caused by hidden moisture
Provides cost-effective sustainability through continuous monitoring
Ensures peace of mind and the longest lifespan of the roof, building or structure

PERMASCAN-C FEATURES
The PermaScan-C is a continuously monitored moisture detection system for conventional roof assemblies (ie. TPO, PVC, EPDM, SBS Mod Bit). The system is installed in a grid-like pattern on the vapor barrier and must be covered with a minimum 2″ insulation overlay.

The only FM approved continuously monitored moisture detection system for roofing
Monitors during construction for moisture intrusion
Can be adapted for monitoring wherever hidden moisture is of concern (ie. within walls, mechanical room floors, etc)
UL Listed
Made in the USA

PERMASCAN-I FEATURES
The PermaScan-I is a continuously monitored breach detection system for inverted waterproofing (ie. hot/cold fluid coatings). The system is installed in a grid-like pattern on top of the membrane. The system must be covered with filter fabric, 6 mil plastic sheeting and a minimum 2″ insulation overlay.

The PermaScan-I (for Inverted Assemblies) system detects breaches in the waterproofing
The best Electronic Leak Detection (ELD) system for a green roof
UL Listed
Made in the USA
