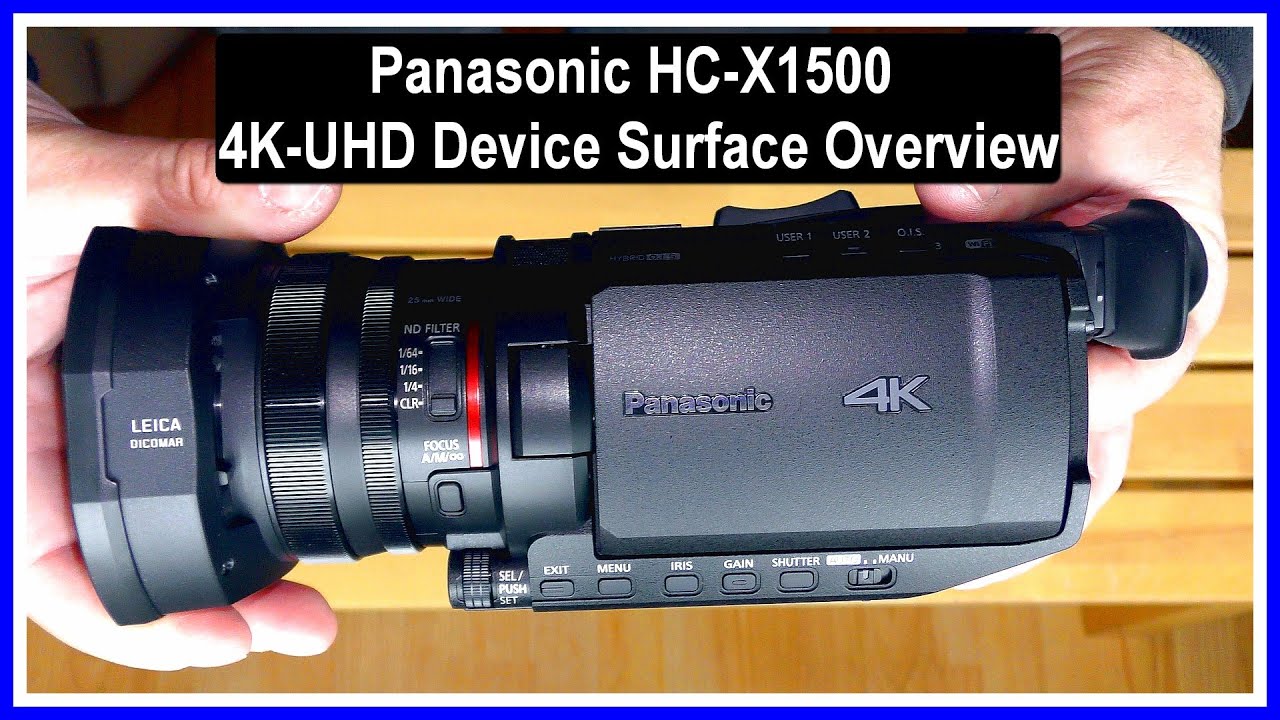

📹Panasonic HC-X1500 4K-UHD Device Surface Overview

Описание: HC-X1500 UHD 4K HDMI Pro Camcorder with 24x Zoom
VERSATILE 4K 60P PERFORMANCE
The Panasonic HC-X1500 UHD 4K HDMI Pro Camcorder with 24x Zoom is the industry's smallest and lightest* 4K 60p camera, packing remarkable optical performance and professional functionality into a mobile compact body with no compromise in image quality.
For a camcorder with an integrated lens capable of 4K 60p recording (as of January 6th, 2020. Panasonic research).
INDUSTRY'S SMALLEST AND LIGHTEST 4K/60P CAMCORDER
Professional shooting everywhere: HC-X1500 packs advanced functions in a well-balanced body to excel both in functionality and mobility. A new ultrathin fan disperses the heat to allow the construction of the industry's smallest and lightest 4K/50p/60p-camcorder and a very low power consumption.
FLEXIBLE FRAMING WITH 25MM* WIDE-ANGLE AND 24X OPTICAL ZOOM
The lens covers the range from 25mm wide-angle to 600mm tele with a 24x zoom. i.ZOOM achieves 32x zoom with 4K resolution, and 48x zoom with FHD.
35mm camera equivalent.
HIGH-PRECISION AF
Face detection helps you keeping the focus on your main subject - even when it is turned sideways to the camera. Distance and exposure are being tracked precicely incorporating the live data read-out from the sensor and sophisticated colour recognition.
5-AXIS HYBRID IMAGE STABILISATION
In addition to the Optical Image Stabilisation in the lens, Electronic Image Stabilisation detects and corrects camera shake. The lens O.I.S. System incorporates balls to drive the motor, which reduces friction and improves the correction of blurring caused through natural hand held camera shake.
4:2:2 10-BIT INTERNAL RECORDING
Allowing you to capture more colour information in 4:2:2 10-bit, the HC-X1500 supports 10-bit Full HD in 59.94p/50p (100 Mbps) and 4K-recording in 29.97p/25p (200 Mbps) on SD-card. Via HDMI-output, you can record 4K/10-bit files even in 59.94p/50p.
FULL-HD LIVE STREAMING
RTSP/RTP/RTMP/RTMPS-compatible HD streaming enables direct connection and distribution of relays for concerts, sports events, and news flashes to Facebook, YouTube, etc.
The handle unit and mic are optional.

WIRELESS CONTROL FROM A TABLET OR SMARTPHONE
A Wi-Fi module is built-in, so Wi-Fi connection of only the body is possible. Using a tablet or smartphone app HC ROP, wireless camera settings, and lens control are also possible.
TWO MANUAL RINGS
Two Manual Rings are provided, one for focusing and the other for zoom or iris operation. The use of the Manual Rings is improved by using different-sized rings in the front and rear, so they can be distinguished by the fingers.

#Panasonic #X1500 #X2000

PRODUCET SPECIFICATION:
SENSOR SECTION
Image Sensor: 1/2.5-type (inch) MOS Sensor
Effective Pixles: 8.29 megapixels
LENS SECTION
F Value F1.8 ― 4.0
Optical Zoom 24x
Focal Length 4.12 ― 98.9mm
35mm Film Camera Equivalent 25.0 ― 600.0 mm
Filter Diameter 62 mm
Lens Brand Leica Dicomar Lens
CAMERA SECTION
Minimum Illumination: 1.5 lx (F1.8, Super Gain +, 1/30)
Focus: Auto / Manual
Zoom: Intelligent Zoom OFF - 24x
Intelligent Zoom: ON - Max. 48x (UHD 32x)
Digital Zoom : 2x / 5x / 10x
Shutter Speed:
59.94 Hz Mode - 59.94i/59.94p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000,1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
29.97p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec
23.98p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
50.00 Hz Mode - 50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
Slow Shutter Speed:
59.94 Hz Mode - 59.94i/59.94p: 1/8, 1/15, 1/30 sec
29.97p: 1/8, 1/15 sec
23.98p: 1/6, 1/12 sec
50.00 Hz Mode - 50i/50p: 1/6, 1/12, 1/25 sec
25p: 1/6, 1/12 sec
Super Slow Recording Frame Rate:
59.94 Hz Mode - FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p)
50.00 Hz Mode - FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p)
ND Filter:
1/4, 1/16, 1/64, OFF
IR Filter:
Incorporates the ON/OFF control function
White Balance:
Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed
Iris:
Auto / Manual
Image Stabilizer:
Ball O.I.S., 5-Axis HYBRID O.I.S. (UHD/FHD)
