Avant attachments: Multi function drive unit

Описание: The new multi function drive unit replaces the earlier auger drive unit A21100. Avant auger drills and screw pile adapter are mounted on it as always, but thanks to the new design the multi function drive unit can also be fitted with various new attachments: concrete mixing drum, screw cone log splitter, screening drum, cable/hose reel, carousel broom and rotary hoe.

In addition, there is a 90 degree angle adapter available on which the drive unit can be mounted. It turns the drive unit 90° to the left. This means that for instance the carousel broom sweeps on the left side of the loader, and the cable/hose reel is crosswise to the loader and winds the cable longitudinally (in parallel to the loader).
Torque 1355 Nm

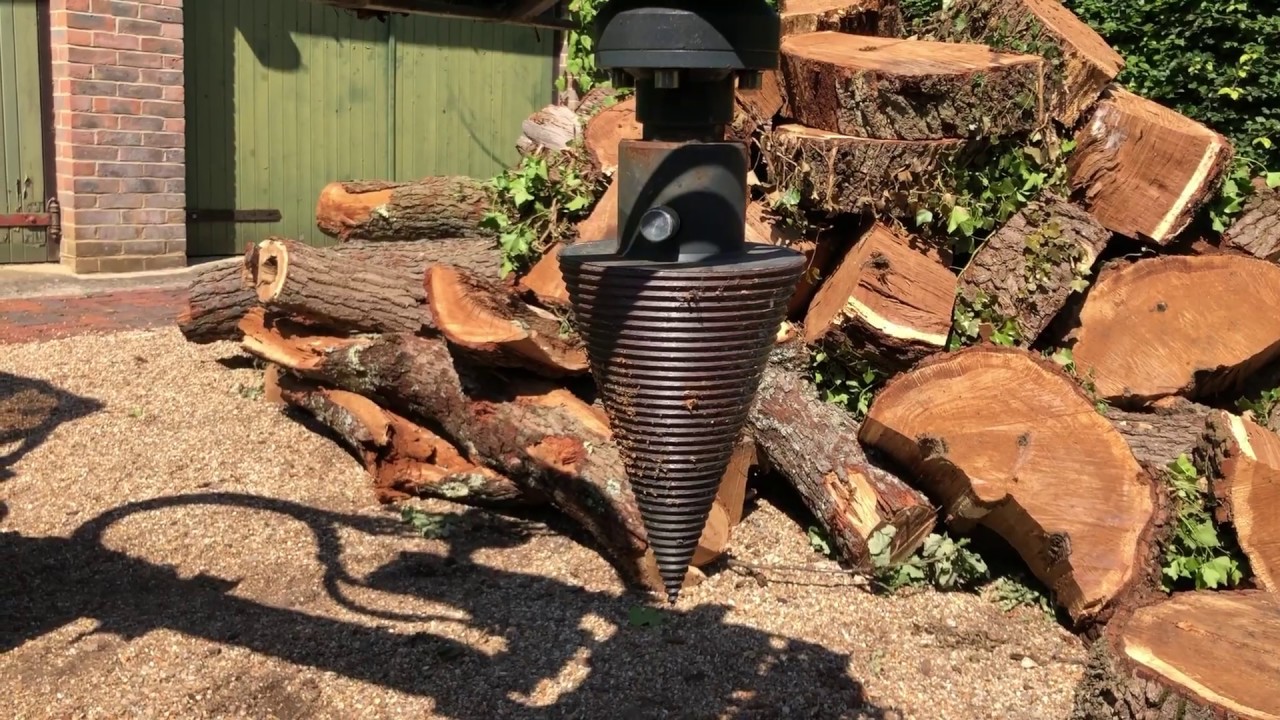

SCREW CONE LOG SPLITTER
Log splitter with a conical splitting screw
Splitting screw equipped with a replaceable tip
Also equipped with a log holder bar which prevents the log from rotating during splitting
Weight 30 kg
CONCRETE MIXING DRUM
CABLE/HOSE REEL
SCREENING DRUM
Intended for screening of soil, gravel and sand
Screening sieve with 50x50 mm holes – included also a separate 22x22 mm sieve, which is bolted on the drum when finer screening is required
ROTARY HOE
For small scale soil cultivating
Equipped with two knife type blades
CAROUSEL BROOM
Same Ø 1000 mm broom as on A2971 Carousel broom
Replacebable brush A32698
Weight 67 kg
Can also be mounted on the A37323 Angle adapter 90°
sweeps on the left side of the loader
ANGLE ADAPTER 90°
Turns the multi function drive unit to point to the left
SCREW PILE ADAPTER
With Avant and multi function drive unit you can install screw piles in the ground quickly and easily. The screw pile adapter mounts on the multi function drive unit and fits on Ø 60 mm screw piles.

The adapter can be mounted on all Avant auger drives – the correct type of the auger drive depends on torque required: how hard the ground is, and dimensions of the screw pile.
