IHC ENGINE hit and miss
Автор: shopdogsam
Загружено: 2010-11-12
Просмотров: 41072

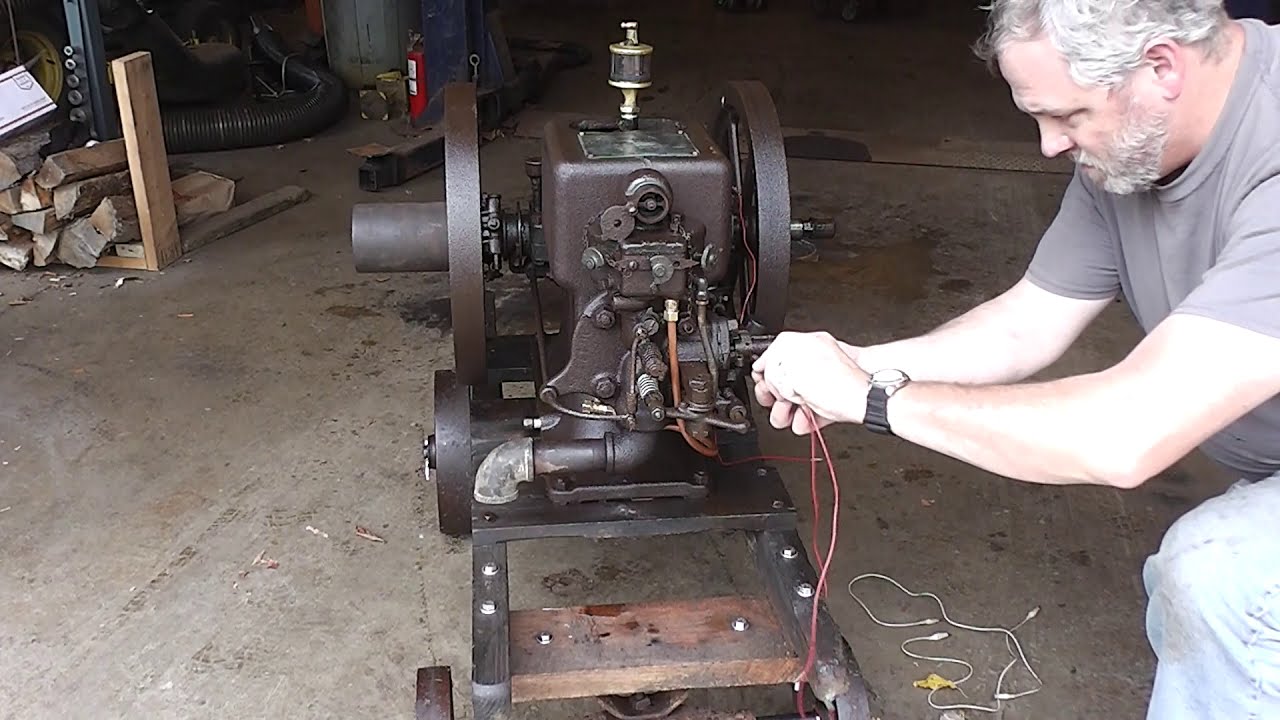

Описание: , IHC, McCormick-Deering, International Harvester, 1 1/2 H.P. flywheel engine is not restored, I just fixed-er up, rebuilt, changed to an exhaust push rod lockout, hit and miss style governor from throttle governored, model type m, one cylinder, water hopper cooled stationary farm motor, when new it had a wico ek high tension magneto, now uses a vintage ford t-model car buzz coil and 12 volt battery, w10 champion spark plug, matched set of oil bell camshaft and crankshaft greasers, detroit brass drip oiler, no fuel pump or crankcase breather, original engine built by international harvester co. Chicago IL, patents pending, year built unknown, ( 1932 ?) used one shot, imiation gold lettering enamel for the pinstriping, el-cheapo spray can rust-oleum rusty metal primer, three coats regal red on the crankcase and dark hunter green on the flywheels, shopmade updraft fuel mixer (carburetor) with check valve in gasoline tank, used a grizzly pan break to build the gas tank, no blueprint, made from 28 ga. galvanized sheet metal, 50-50 soft solder, inside tank coated with kreem fuel tank sealer, moved exhaust valve and straight pipe muffler to top of head, moved intake valve to bottom of head, rocker arm built to fit, built two eight inch & two ten inch spoked steel wheels and used treated pine wood rails, fourty inches long for cart, subscribe, leave a comment, pass it on. Thanks
