#28 Creo Detailed Drawing- Welding Symbols In Drawing

Описание: #MdDesignAcademy #CreoTutorial #CreoTutorialForBeginners #Creodrawing

To download the presentation follow the link: https://drive.google.com/drive/folder...

In this video tutorial we will learn about welding symbols type and its application along with practical examples. Welding symbols are well explained in this tutorial.

Following topics are to be covered during this tutorial:
1.The Necessity of Weld Symbols
2. ISO 2553 and ANSI/AWS A2.4-98

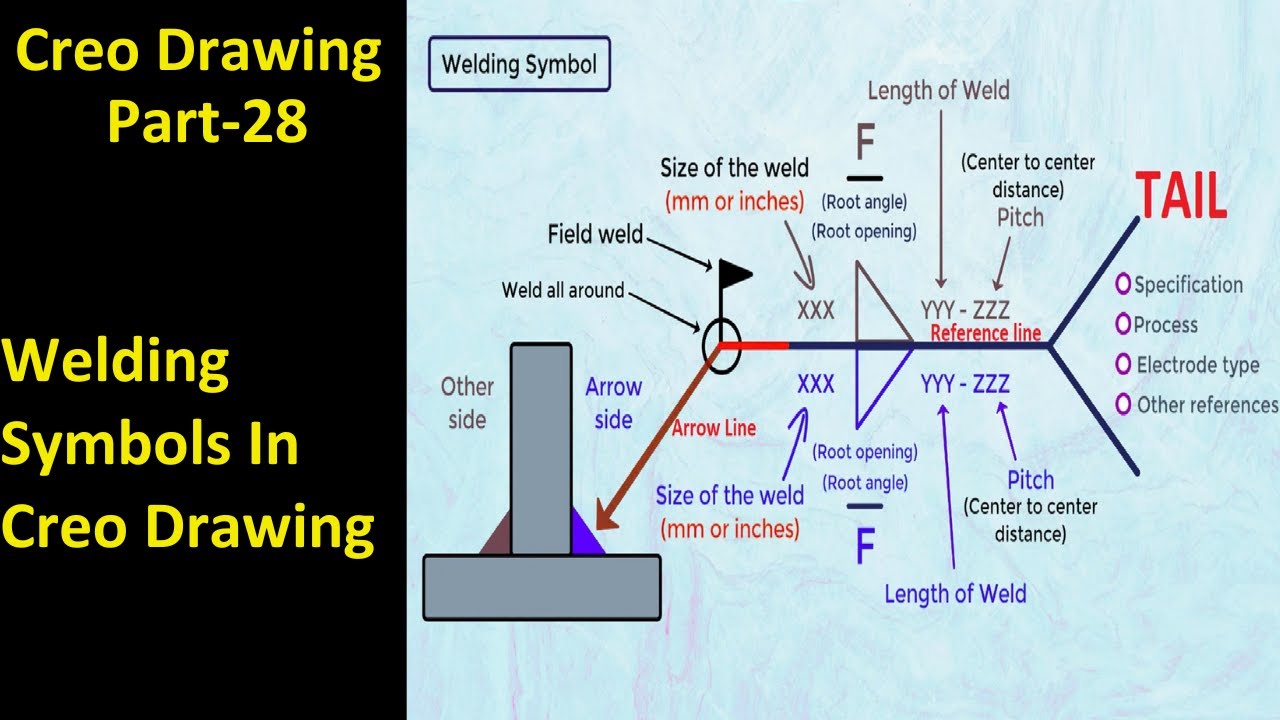

3. Welding Symbol Elements: The elements of a welding symbol carry a specific kind of information that a symbol conveys. There are elements that may be a part of a typical welding symbol. They are as follows- Reference Line, Arrow, Basic Welding Symbol, Dimensions, Finish Symbols, Specifications, Process, Supplementary Weld Symbols and Tail.
4. Welding Symbols Types:
After seeing a little bit about weld symbol elements, take a look at different welding symbols. It consists of both Basic Welding Symbols and Supplementary Welding Symbols. The first one is the most commonly used in drawings and later one can be used to convey additional information about a weld.
A. Basic Welding Symbols: Welding Symbols consist of symbols for different types of Groove or Butt Welds. Further, it includes Bevel Groove Weld, Square Groove Weld, V Groove Weld, J, U, etc.
They also consist of Fillet Weld, the most frequently used type of weld, Edge Weld, Spot Weld, Plug/Slot Weld, etc.
B. Supplementary Welding Symbols: The supplementary welding symbols provide additional information about the weld joints. Sometimes, the same symbol is used in the AWS and ISO standards.
