Please follow us to watch the production line of European type wood pallets.

01 Block connecting machine
First of all, block connecting machine aims to assemble pallet blocks and bottom deckboard. With the assistance of PLC and servo motors, our machine can complete the nailing work precisely.

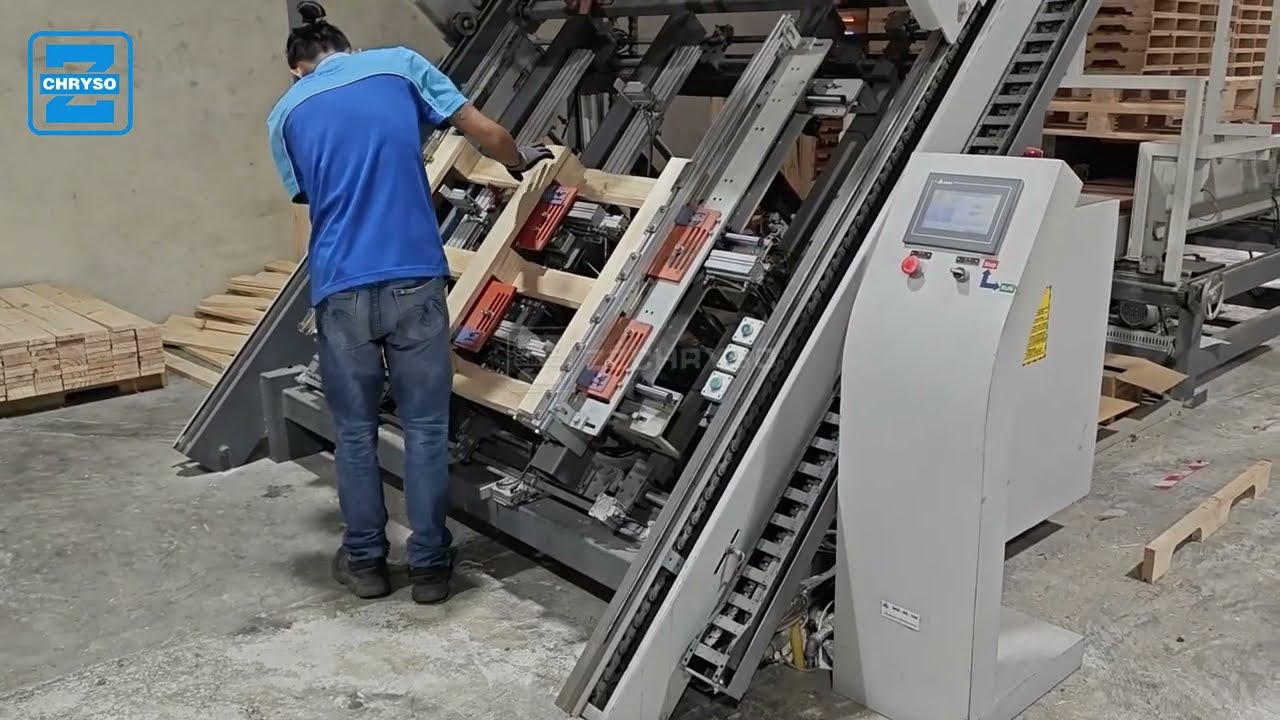

02 Euro pallet nailing machine
Secondly, put the bottom deckboards that have been connected with wood blocks on the machine, the stringer boards will be fixed by the clamps on the machine.
Then put the top deckboards on the holders on the clamps. After pressing the button on the control panel, the nail guns will go downwards and shoot nails to connect the deckboards with the pallet.

03: Rotating machine
Once upon the nailing process is done, the half-finished pallet will be taken to the rotation part. The pallet will be rotated 90 degrees counterclockwise.

04: Branding machine
Afterwards, the stamp will be imprinted on both sides of the pallet by the branding machine which is usually equipped with four soldering irons.

05: Chamfering machine
In the following step, the four corners of the pallet will be chamfered.

06: Stacking machine
In the next place, the final pallet will be carried to the stacking machine and keep staying on it after being lifted by a hydraulic device, until the amount has reached the rated number.
07: Turnover machine
By stacking pallets with obverse and reverse stacking method, the turnover machine is helpful for storing more pallets on the stacking machine.)
Normally the automatic stacking machine allows no more than 20 pallets in one column.

08: Conveyor
Then all the pallets will be stored on the conveyor.
The whole production line consists of block connecting machine, pallet nailing machine, rotating machine, branding machine, chamfering machine, turnover machine, automatic stacking machine and conveyor. This production line needs no more than two workers to operate. Moreover, customized services and machine configurations are all provided for our customers to meet different needs of automation.
Finally, the conveyor can carry 3 columns of pallets at most, then these finished pallets can be carried away by your forklift.
We’ve never stopped pursuing better quality, together with efficient work and low cost, your business will definitely grow with redoubled power.
