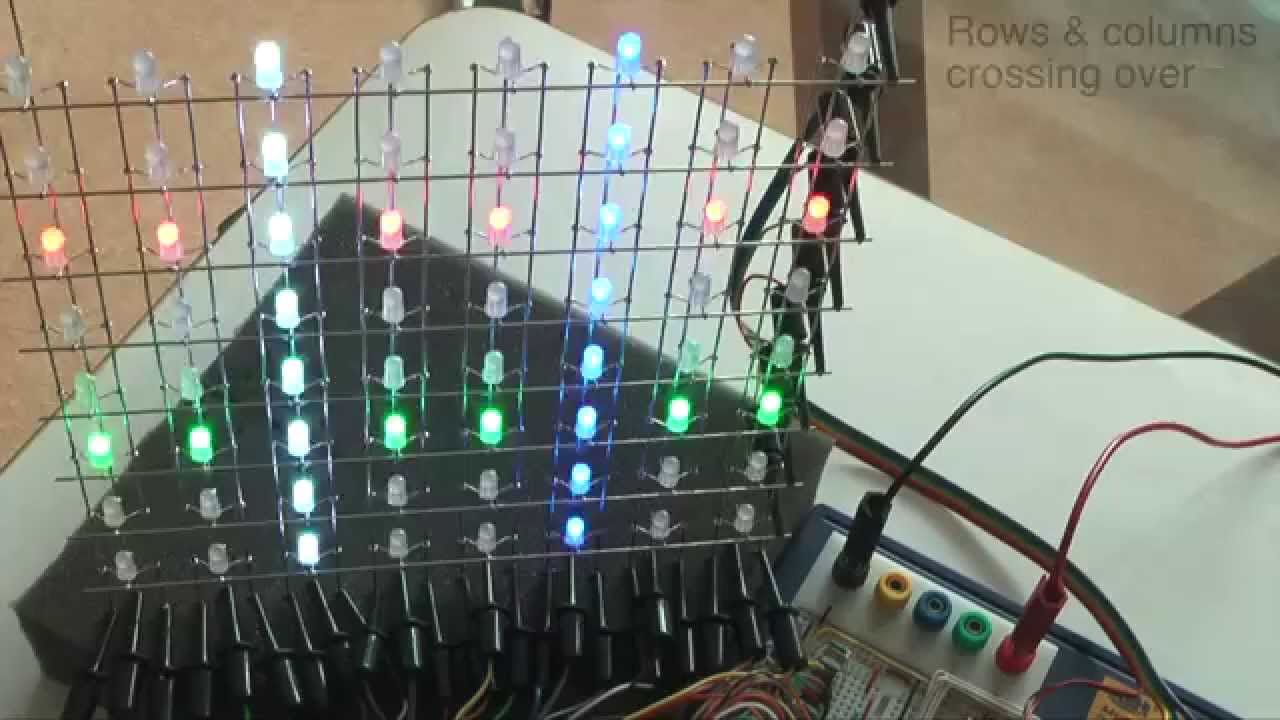

Construction of an 8x8x8 RGB LED Cube. Part 4: Testing 8x8 Panels

Описание: This is part 4 of a series on how I'm building an 8x8x8 RGB LED Cube. This time I demonstrate the testing of the 8x8 panels

Useful files of project so far for Download (PDF format):
https://www.dropbox.com/sh/fyvszu2xno...
Includes:
Schematics
PCB Layouts
Gerber Files
Arduino Sketches
Full Parts List
Jig Drawings
Blogs
