Building an Electric Car - EV Parts - Open Source Inverter Wiring

Описание: After giving a high level overview of the EV wiring in our Electric Porsche 911 wiring in a previous video, there were quite a few comments asking for more detail, both of the wiring and the components.

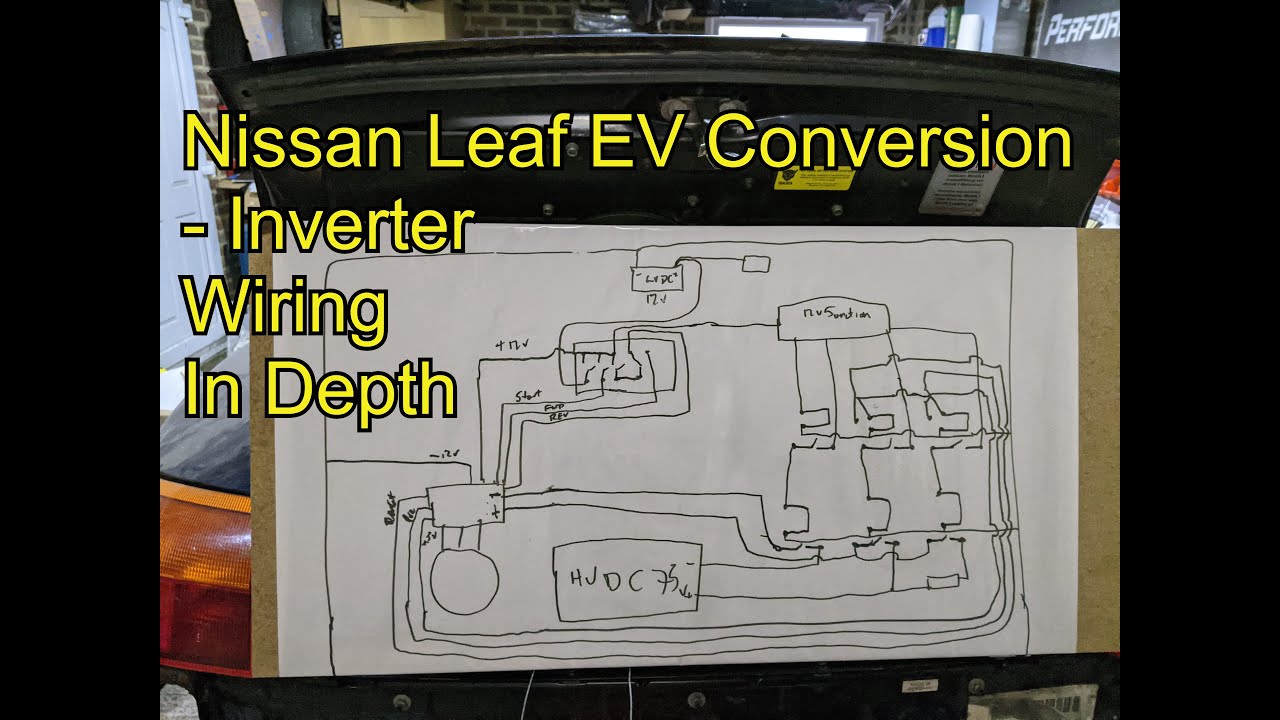

I have yet to find software for drawing up wiring diagrams that I enjoyed using, so I have gone for the freehand approach.

the main components I used are
Precharge Relay - Omron G9EJ-1
12Vdc Coil - 15A - 400V switching
High Voltage Relays - Omron G9EA-1-NP
12Vdc Coil - 60A 400V switching
Precharge Resistor - Wirewound resistor
150R - 100W
12V Relay - Generic JD1914
12Vdc Coil - 40A 14V switching
Software controlled relay - arduino relay block clone
5Vdc Coil - 50mA drive - 10A 30V Switching

Alternative Relays
Precharge - Panasonic AEV52012, Panasonic AEV31012
Main Contactor - Tyco Kilovac EV200, Panasonic AEV14012

Good thread on parts for EV conversion including electrical items:
https://openinverter.org/forum/viewto...


The board I have chosen is the "Open Inverter" logic board with a Nissan Leaf adaptor board. Full details of this open source inverter can be found here:
https://openinverter.org
And the boards are available to purchase through the shop.
There is also a community growing around these and associated boards built on the same architecture and software here.
https://openinverter.org/shop/
I have no association to this other than liking the design and simplicity of the product and I will let you all know how I get on with the boards in future videos.
https://openinverter.org/forum/

I haven't given up on the goal of controlling the inverter using CAN commands, however I know if I spent too much longer on it there was a risk that the project could stall as I end up focussing on that. I still want to be able to control the inverter this way, but I will pick that back up once I complete this build.
