DIY Self Contained Dual Band Ground Station. (5.8Ghz & 1.3Ghz FPV)

Описание: DIY Self Contained Dual Band Ground Station. (5.8Ghz & 1.3Ghz FPV)

Initial build video.
And yes I've not plugged in the DVR video cable or the DUO5800, i forgot to plug them in LOL.

Massive Thanks to Paul for making the wooden frame out of my dodgy as hell pencil sketches :)

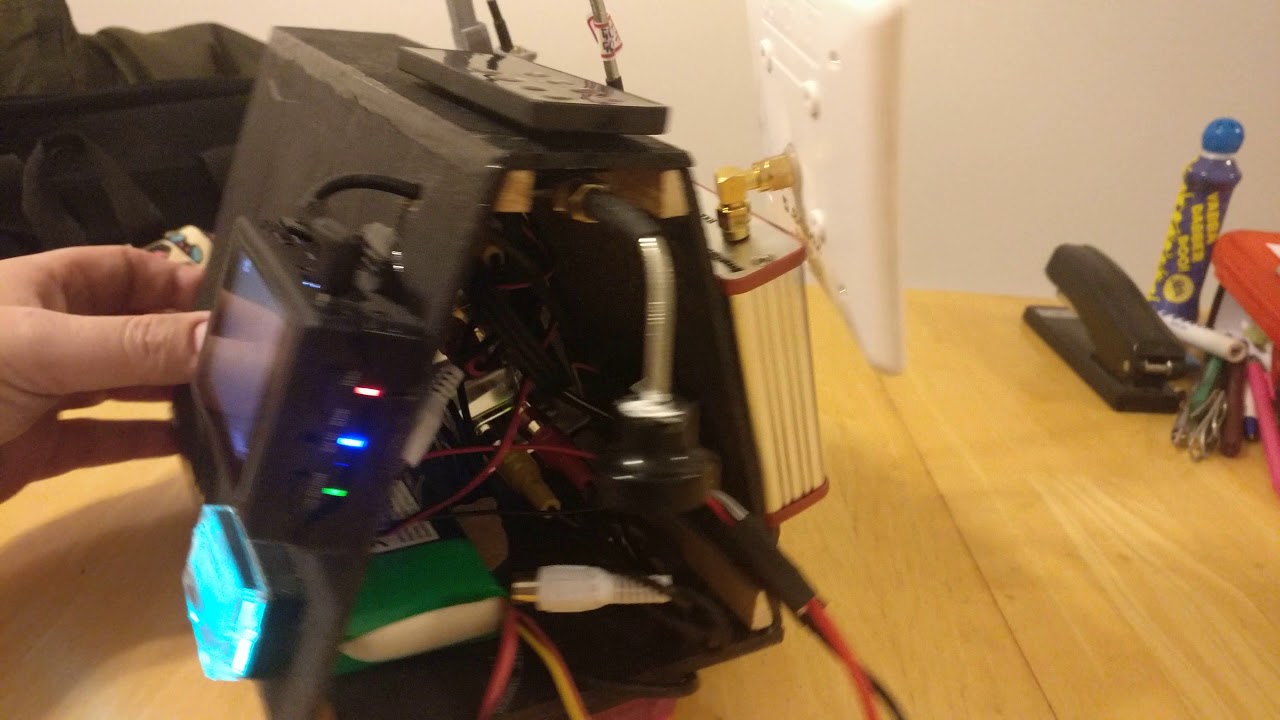

I got tired of my big bulky FPV Ground Station that was a pain to setup so i designed something that could be self contained and thrown on the top of a car roof or tripod mounted.
I still have space for improvements but for now i'm very happy...

I like the ease of being able to receive both 1.2-1.3 & 5.8ghz, this unit enables me to switch between both with the push of ONE button..

The entire unit pulls less than 900mAh/Hour, so i can get 4 hours with everything turned on which obviously it wont be.

Components & Materials:....
RMRC 1.3Ghz VRX
Prodrone.pl 6.5dbi 1.3Ghz tuned Moxon Linear antenna
ImmersionRC DUO5800 v3 Diversity VRX
ImmersionRC 13dbi 5.8ghz RHCP Patch
Prodrone.pl skew planar antennae 5.8ghz
firstpersonview.co.uk DVR
DJI Lite Power VREG to power the DVR
Eagletree EagleEyes Diversity Unit
LCD Programmable Volt meter.
FATSHARK 10mW 5.8Gghz Repeater.
Menace 5.8Ghz Pagoda Antenna
Multistar 3S5200mAh Lipo
Lots of soldering, heatshrink tubing and bits of wood :)

Future Improvements:....
Side panels
Charging jacks
Swap Lipo for Li-Ion
Constant 12v buck-boost converter so i can use 2S-6S lipos.
Maybe another RMRC VRX
Tidy up wiring.
Paint it
Strobes on top ??????
Suggestions. ???????
