Scott's Z80SBC Part-1: 4-layer PCBs with Eagle and JLCPCB
Автор: smbakeryt
Загружено: 2018-07-15
Просмотров: 20484

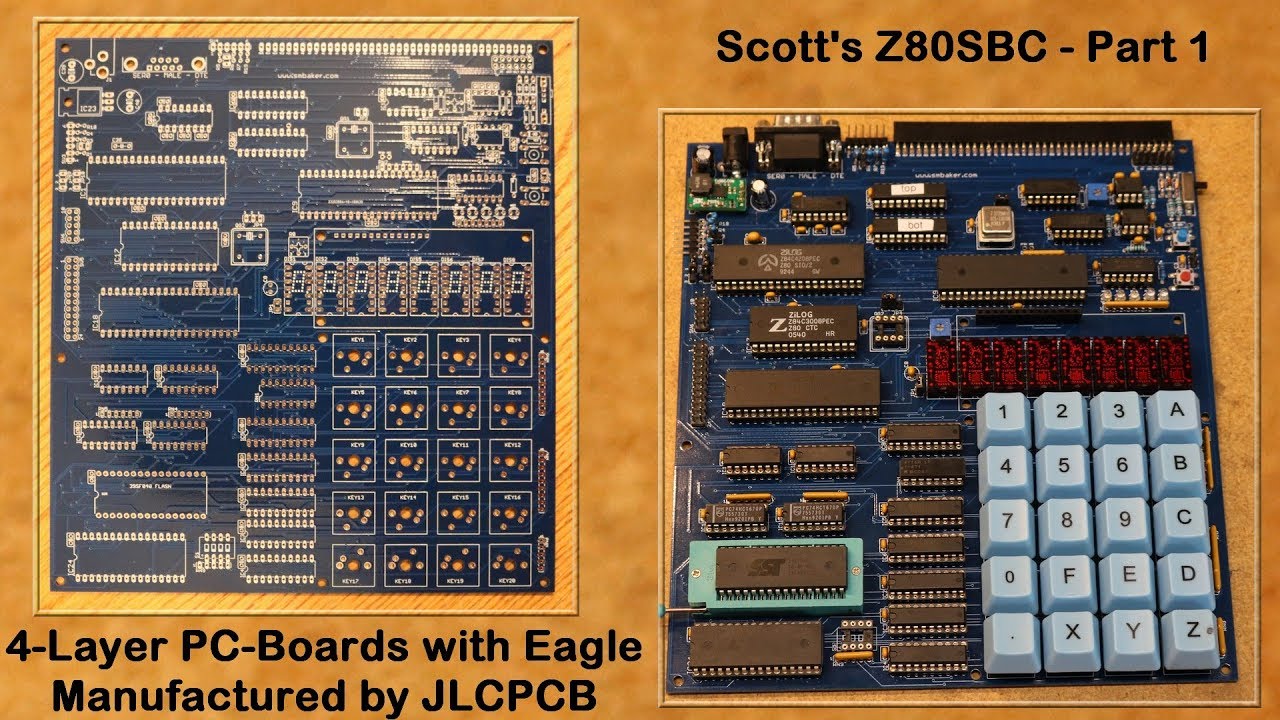

Описание: I've done a couple JLCPCB(https://jlcpcb.com) reviews previously for $2 quick turn prototypes, and for ENIG production boards. I've been wanting to do a large 4-layer board for a while, and decided to use this opportunity to put together a single-board Z80 trainer. This is expected to be the first of a multi-part series on my Z80 SBC Computer. In this video, I go through some of the steps necessary to produce a 4-layer board in EAGLE, set the stack-up, generate the gerber and excellon files, etc. I then assemble the board and do a short demo. For more electronics projects, see http://www.smbaker.com/
