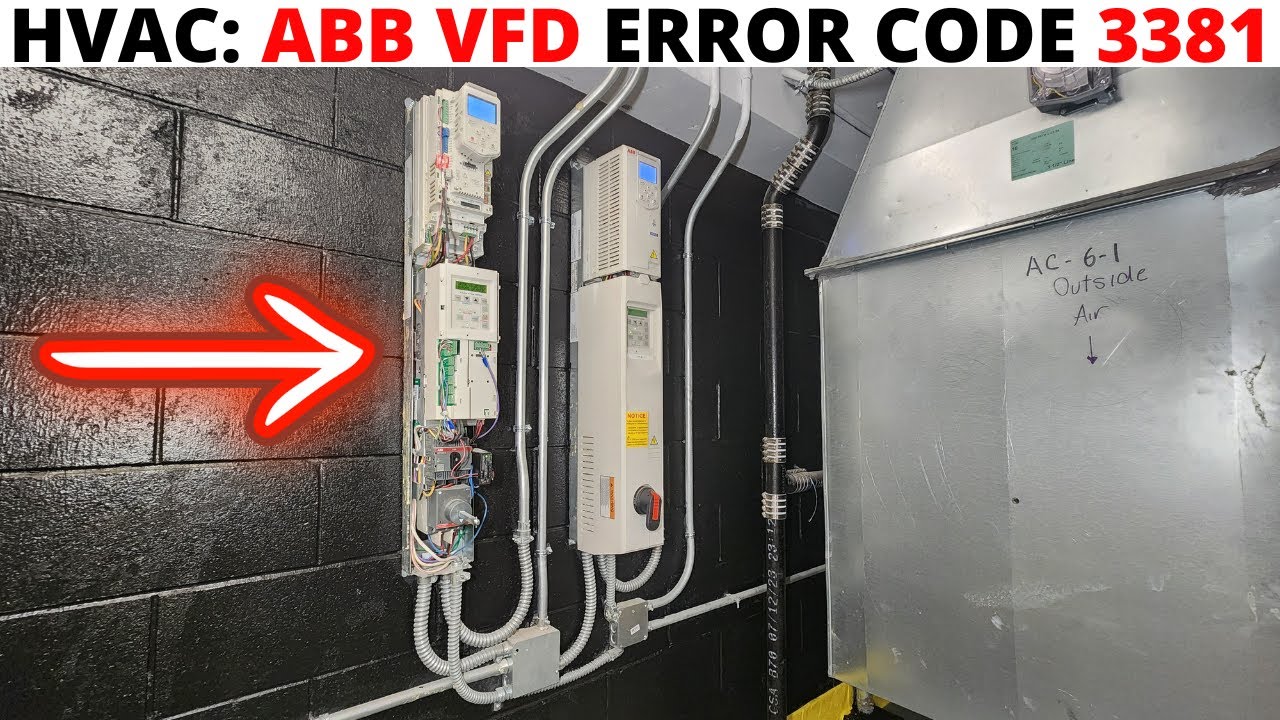

HVAC: ABB ACH580 VFD Error Code 3381 Troubleshooting/Repair (ABB VFD Fault 3381/Output Phase Loss)

Описание: HVAC: ABB ACH580 VFD Error Code 3381 Troubleshooting/Repair (ABB VFD Fault 3381/Output Phase Loss) ABB ACH580 / ABB ACH550 / VFD Training / VFD Maintenance / VFD Service Call / VFD Troubleshooting / VFD Repair #jumpermantech #hvac #hvactechnician #hvacr #hvaclife

The ABB VFD fault code 3381 signifies an "Output phase loss," meaning the drive detects that one or all three motor phases are missing or disconnected, causing a motor circuit fault, often due to a broken connection, open motor lead, loose terminal, or cable issue between the drive and the motor, requiring inspection of all motor connections and wiring.

Common Causes for Code 3381:
-Broken Motor Connection: One or more motor phases are not properly connected to the drive's output terminals.
-Open Motor Leads/Windings: A break in the actual motor wires or within the motor's internal windings.
-Loose Wiring: A loose connection at the motor terminal block or the drive's output terminals.
-Faulty Cable: Damage or a break in the cable running from the Variable Frequency Drive (VFD) to the motor.
-Blown Fuse/Overload: A fuse in the motor circuit or an internal overload condition could cause a phase loss.
