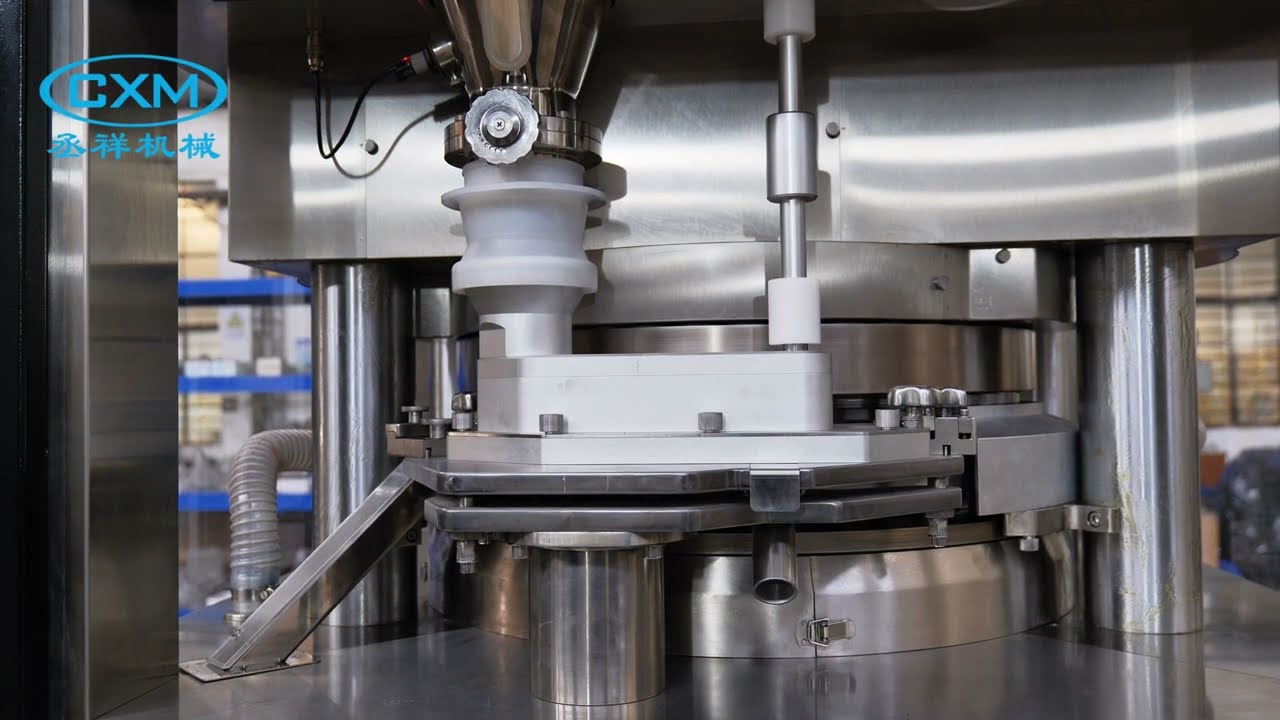

GZPK570 Series High Speed Rotary Tablet Press Machine, Tablet Compression Machine.

Описание: GZPK570 Series High Speed Rotary Tablet Press Machine,Tablet Compression Machine.
Visit our website to know more about this machine:
https://chinapillpress.com/product/gz...

Applications:
This machine is the latest high-speed tablet press developed by our company. Its system structure & key-parts are designed and manufactured according to worldwide newest technical standards of tablet press.The machine has the advantages of novel & reasonable structure, high automation, excellent material & electrical configuration, stable & reliable operation and beautiful appearance. It is an ideal upgrading product of pharmaceutical & health-care industries.
Features:
1. Perfect pressure system with main pressure & pre pressure, large pressure wheel with special structure design, so the machine has the ability of bearing heavy load without deformation and having long compression time.

2. Machine rotation speed is high and the turret linear speed is more than 100m/min; the maximum output can reach 450,000 tablets/h, it can meet the requirements of mass production for most pharmaceutical companies.

3. Upper pressure wheel is equipped with high accuracy pressure sensor through the lever principle. The average working pressure and single value pressure of tablets can be accurately displayed in touch screen. Once actual working pressure exceeds the limit, the machine will automatically stop.

4. This machine adopts automatic lubrication system to supply oil to the upper & lower guide rails, pressure wheels, upper & lower punches, etc., The lubrication time is freely adjusted on the touch screen, so as to obtain the best lubrication effect, reduce noise and extend the using life of related parts.
5. Without handwheel control, the main pressure, pre-pressure and filling volume can be adjusted automatically via touch screen.

6. With various monitoring and protection functions: raw material level, lubrication oil level, loading and unloading of upper & lower punches, pressure overload, interlock protection of doors & windows, emergency stop.

7. The electric control cabinet is integrated with the host machine, occupying a small area, the whole machine looks beautiful & advanced, and it’s easy for operation and maintenance.

8. High-precision reduction gearbox, which has the characteristics of small clearance, stable running, low noise, and high bearing capacity.

9. Adopt high strength frame structure, main pressure 100KN and pre-pressure 40KN. It is especially suitable for direct powder compression, herbal medicine tablets and big size tablets.

10. The tablet compression chamber adopts fully enclosed transparent window structure, which can clearly observe the working state. The tablet chute is located on the corner of main column, which makes it easy to open the door and window, ensure good sealing performance and effectively prevents dust pollution.

11. Tablet compression chamber is completely separated from mechanism transmission area to effectively prevent cross contamination. All the contact parts are made of stainless steel or special surface treatment. There is no dead corner in the tablet pressing chamber, easy to load and unload molds, easy to clean and maintain. It meets the GMP standard.

GZPK570 Series High Speed Rotary Tablet Press, Technical Parameters
Model GZPK-41 GZPK-51 GZPK-61 GZPK-65
Number of Stations 41 51 61 65
Tooling Standard D B BB BBS
Max Main Pressure (KN) 100
Max Pre-pressure (KN) 40
Max Tablet Diameter (mm) Round tablet 25 18 13 11
Irregular tablet 25 19 16 13
Max Filling Depth (mm) 20 18 15 15
Max Tablet Thickness (mm) 10 8 6 6
Max Turret Speed (r/min) 60
Max Production Capacity (pcs/h) 295200 367200 439200 468000
Motor Power (kw) 11 11 7.5 7.5
Overall Size (mm) 1420×1200×1850
Machine Weight (kg) 3500
