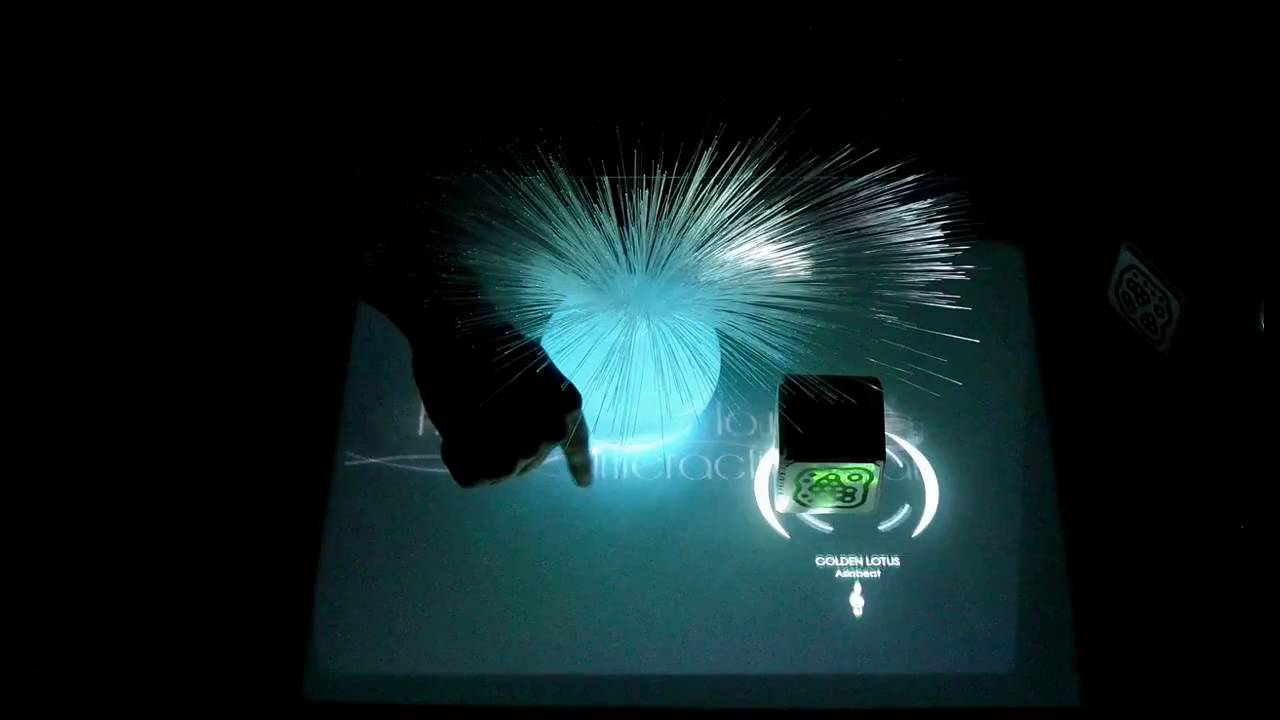

Multitouch table Bar application by Freshpatata - Reactivision Fiducials + Flash

Описание: Prototype of a rear DI multitouch table and multitouch application to use in bar tables.

Work and video by http://www.freshpatata.it.

Created in flash cs4 and action script 3 can recognise the drinks on the table thanks to the fiducials (images recognised by the software that is Reactivision).

All the infos in details and high resolution photos can be found here:
http://nuigroup.com/forums/viewthread...

The setup:
Frosted glass - used as projection surface and touch interface
Sharp PG-B10S - Projector
Stardard Mirror
PS3 EYE webcam running at 640x480 30fps
48 IR LEDS - Specs. 850nm 140° 1.45V 50mA
48 IR LEDS - Specs. 850nm 60° 1.45V 50mA
The screen i obtained is more or less 46 x 36 cm but the camera could not see al the visible area..

Software used:
Reactivision - for both finger and fiducial recognition and tracking
FLOSC - to make reactivision interact with the flash swf file
Adobe Flash CS4 - for the visual interface
Adobe After Effects CS4 - for some visual effects

Song in the video:
Infinity - Guru Josh Project
Disco Strobe - Christian Marchi
In my Hearth - Rue du Soleil
Golden Lotus - Asiabeat
Say it right - Nelly Furtado

Thanks to:
All the nuigroup crew, especcialy nacho how gave me great help for building the visual interface.
http://nuigroup.com
The reactivision crew
http://reactivision.sourceforge.net/

This is a Freshpatata creation - visit us at http://www.freshpatata.it
