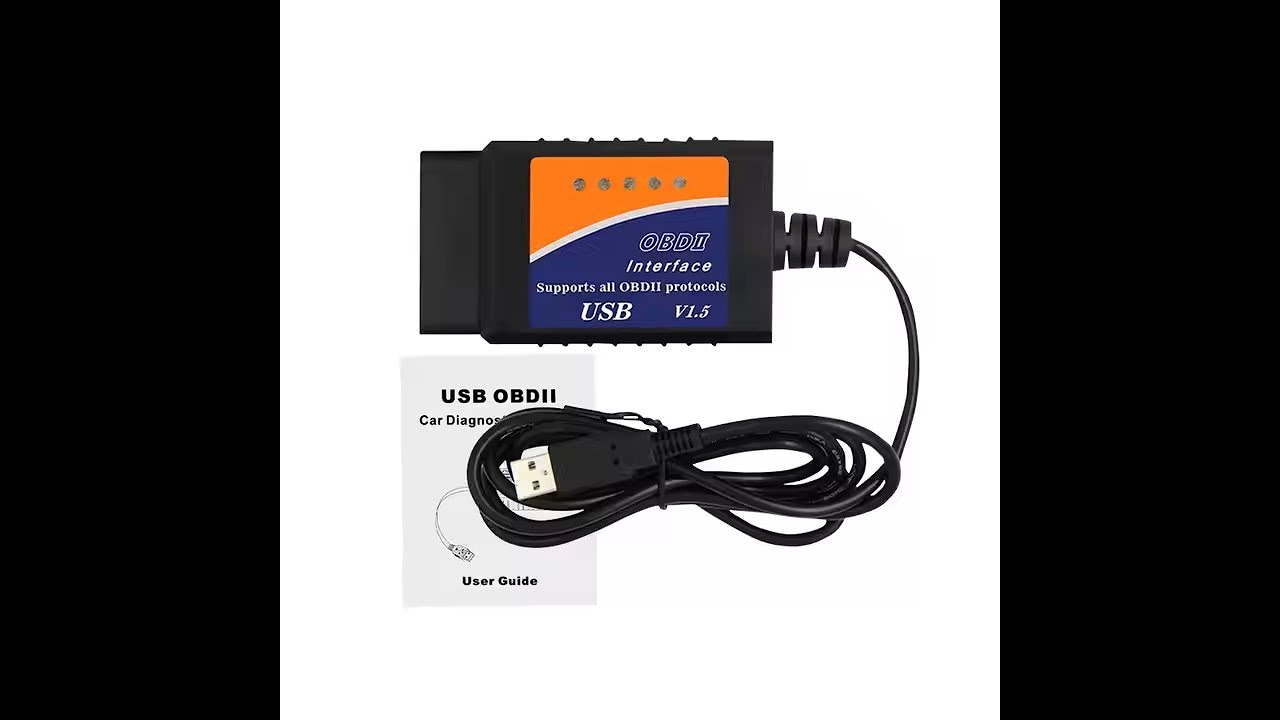

DANLITE NEW USB BLACK ELM327

Описание: DANLITE USB BLACK ELM327 NEW UPDATE

CALL 8077126903 or 7505174528 for more information

WhatsApp : https://wa.me/918077126903

WhatsApp : https://wa.me/917505174528

WhatsApp Channel : https://whatsapp.com/channel/0029VaiD...

YouTube Channel :    / @danlitetoolstechnician277

Instagram :   / danlite.in

Website : https://danlite.in/


Top 4 Reasons To Get MINI OBDII USB V1.5 Scanner :

1. Software Version: V1.5 (depending on software)

2. Hardware Version: V1.5

3. Works with all OBD-II compliant vehicles

4. USB Cable





Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4 Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)



MINI OBDII USB Scanner Functions:



1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL ('Check Engine' light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others



MINI OBDII USB Scanner Specifications:

Communication: USB Interface

Master Chip: ST

Driver IC: PL2303

Support System: Windows

Working Voltage: 9v ~ 16v

Working Current: 15mA

Standby Current: 0mA

Operating temperature: -40 ºC ~ 85 ºC

Working Humidity: less than 60%

Size: 45mm * 25mm * 75mm(Cable Length 1.5M)



Compatible systems:

Software support platform: Windows XP, Windows 7/8.
