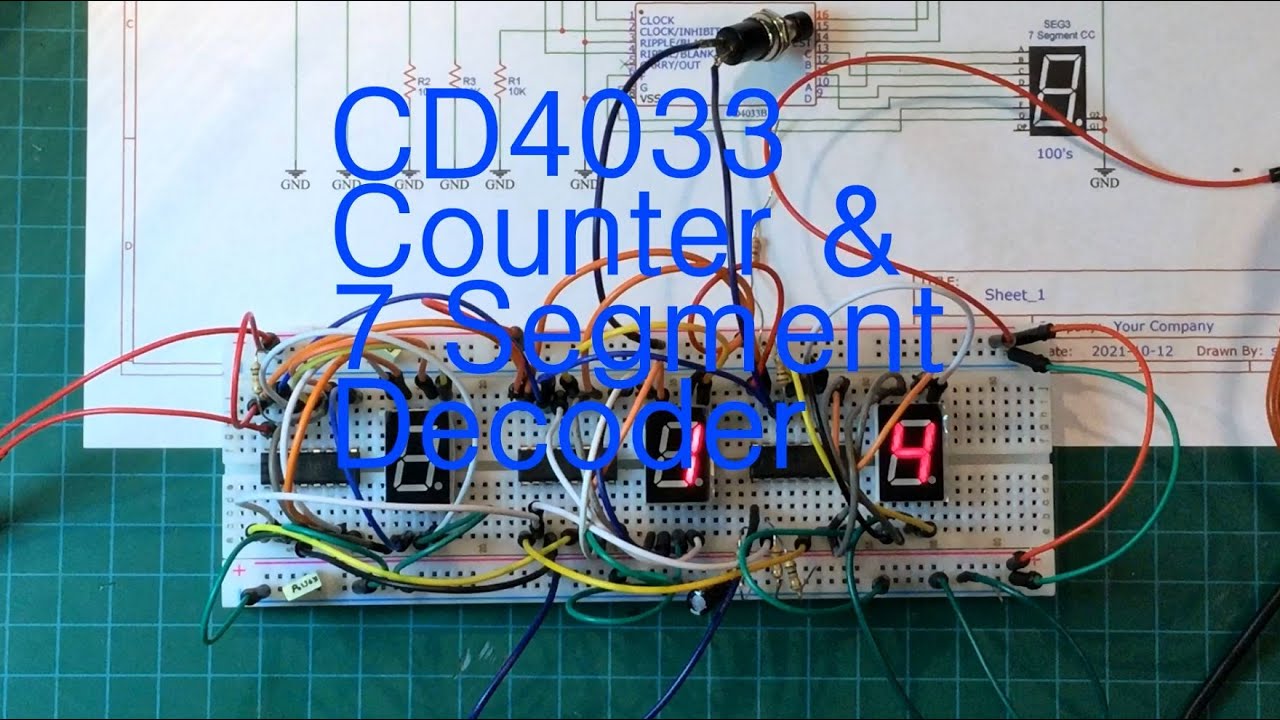

Designing a three-digit counter with 3D structure and 7segments and IC 4033,Designing a 3D counter

Описание: In this video, a 3-digit counter is designed using IC 4033 and 3 numbers of 7 segments. In this circuit, the pulse generation is done using a push button, and the counter counts one every time the push button is pressed. A push button is also placed to reset the counter to zero.



Required parts:
IC 4033: 3 pcs
Common cathode 7segment: 3 pcs
100 KΩ resistor: 1 pc
1kΩ resistor: 6 pcs
27 kΩ resistor: 1 pc
Copper wire size 2: 0.5 meter
9V Battery: 1 pc
Pushbutton: 3pcs
