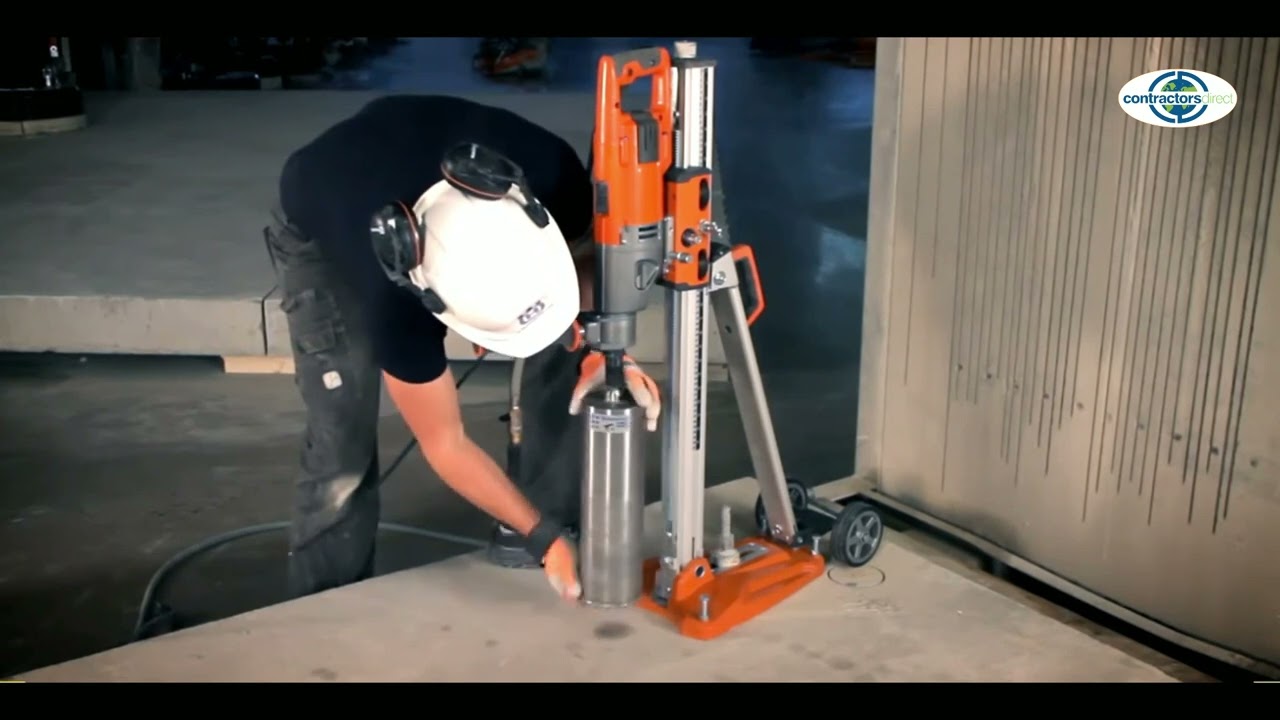

Husqvarna DMS Core Drill Rig
The Husqvarna DMS 180 is a lightweight core drill rig for the rental shop or professional who requires high performance in a compact machine.
Features
Comes standard with a combination vacuum/anchor base
Vacuum sold separately
The stand can be tilted from 0 to 45 degrees for angle drilling
Designed to fit most hand held core drill motors
V-groove roller carriage allows for accurate alignment that requires minimal adjustment
Drill holes up to 6" (153mm) in diameter
19" drilling stroke
1,725 watts/15 amp motor with an 800 rpm single-speed gearbox and electric overload protection
Mechanical clutch reduces risk of motor damage
Base Material Cast aluminum, 4 leveling screws
Benefits
Light and compact, it is easy to transport and mount the stand
Fast set-up with the integrated vacuum base eliminates anchoring or clamping
Equipped with stabilizing guide rollers for accurate drilling as well as cleaner, straighter holes
The back support is clamped to the column with a rigid patented locking system, stabilizing operations
Adjustment screws on the base plate, carriage and back support can be adjusted with the feed handle
The stand has a jacking screw on the top for easy clamping of the stand
