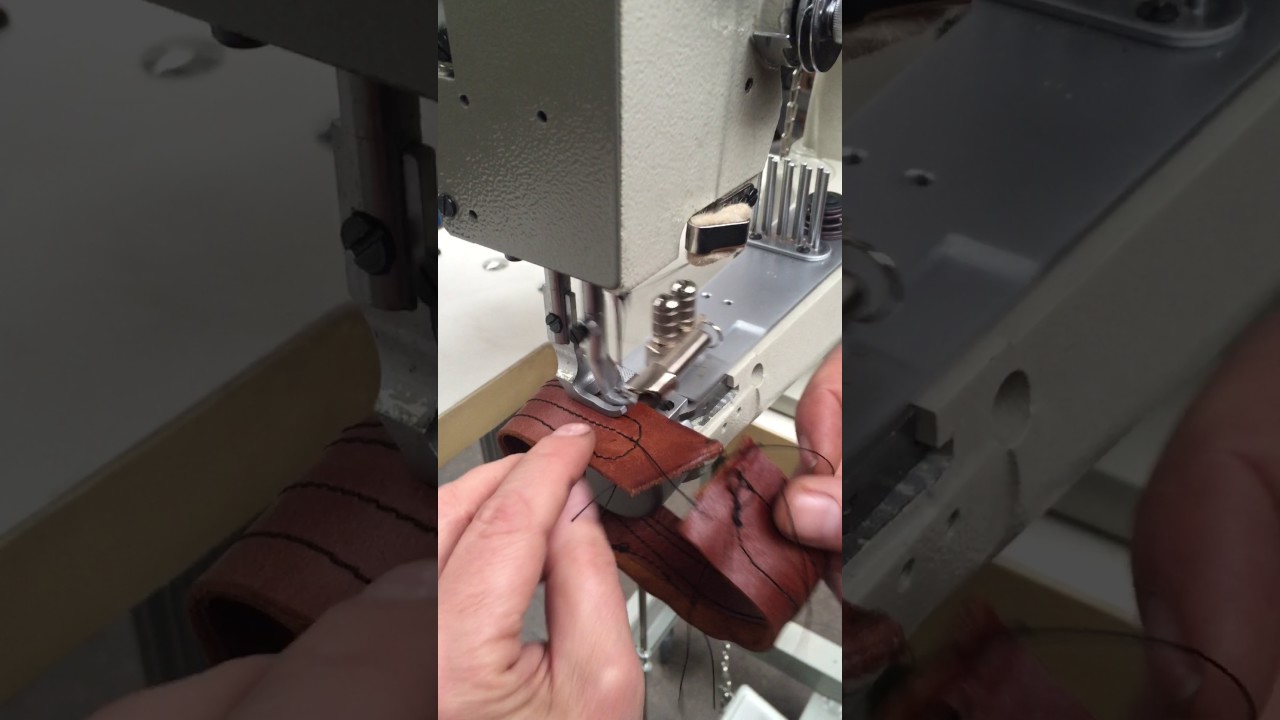

DCR 335, INDUSTRIAL CYLINDER ARM SEWING MACHINE

Описание: DCR335  compound feed, cylinder arm, heavy duty sewing machine (bottom feed, needle feed and walking foot feed) with large vertical axis hook & base. Driven by our 800W silent motor which provides a powerful and steady feed which enables you to sew multiple ply of medium to heavy weight material

DCR335 has a 71mm diameter heavy duty cylinder arm shape for use in production of leathergoods, bags, luggage, filters, seats, straps and upholstery. The large vertical axis hook and bobbin offers twice the normal thread capacity. The presser foot capacity is up to 14mm, allowing for a ease of use under foot.

Piping attachments are also available


Specification:

Supplied complete with 800W silent servo needle position motor
Large vertical axis hook
Heavy duty cylinder arm 71mm
Heavy duty triple feeding action
High lifting foot assembly
Reverse stitch lever
Max sewing speed: 2200spm
Max stitch length: 6mm
Needle bar stroke: 33.2mm
Take up stroke: 61.5mm
Presser foot lift by foot: 8 – 15mm
Needle size: DPx5 #20 - 23

Options:

Various sewing feet and piping attachments
Edge guide
LED needle light kit
UK nationwide installation
We also offer service and a breakdown service on all makes of industrial sewing machines
If you cannot find a machine on our site please contact us - WE ALSO BUY SURPLUS MACHINERY
