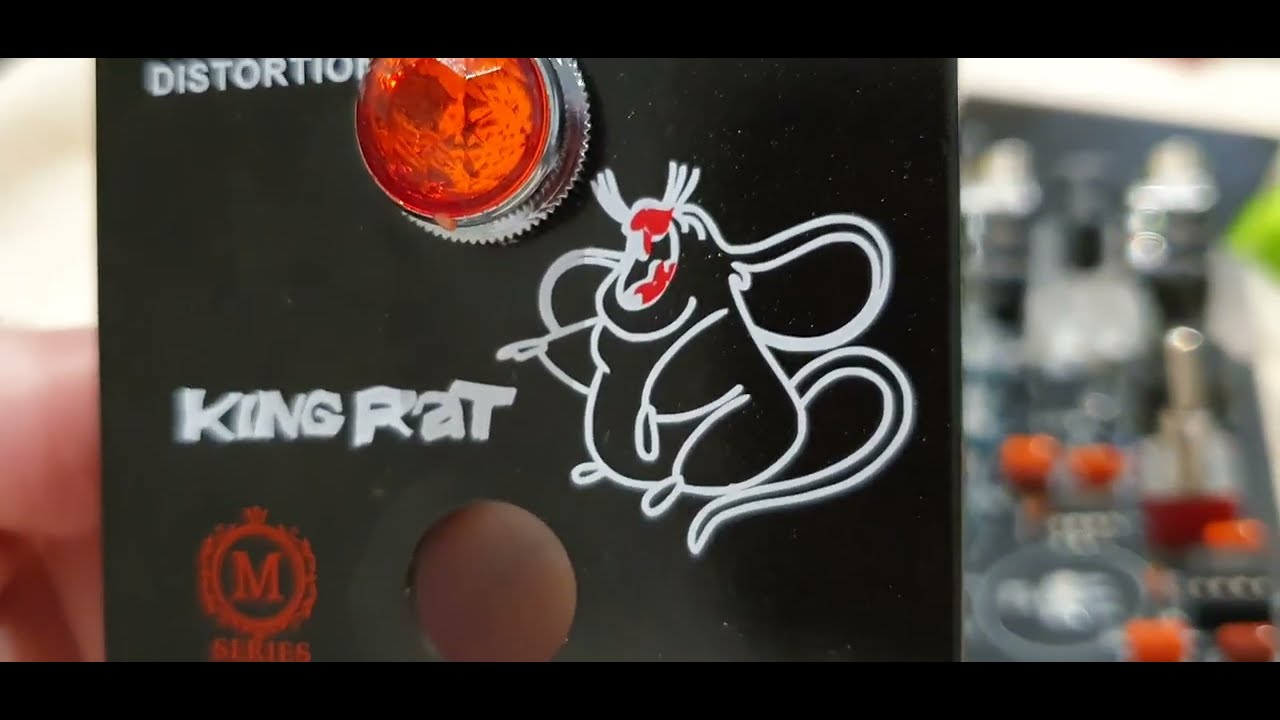

Mosky Audio "King Rat".JHS PackRat "inspired" pedal teardown.
Автор: Edward Jones
Загружено: 2024-01-17
Просмотров: 4988
Описание:
This pedal cost me $50aud inc shipping from AliExpress.
It features a rotary switch that selects the clipping diodes for the circuit. The only appreciable differences between the flavours of Rat pedals is the clipping diodes.
The toggle switches between the two different opamps.
Given it's a DPDT, it'll just be switching the outputs of the 2 opamps.
The "LM308" is SOCKETED. From the factory.
I haven't had a chance to check the authenticity of that chip yet.
I will be socketing the OP07, too. This will enable me to toggle between a real LM308 and the one in situ.
My favourite Rat circuit analysis: https://www.electrosmash.com/proco-rat
Good summary of all the different RAT design variations on one sheet: https://imgur.com/ESsdLMO
JHS' article: https://thejhsshow.com/articles/histo...
https://en.wikipedia.org/wiki/Pro_Co_RAT
