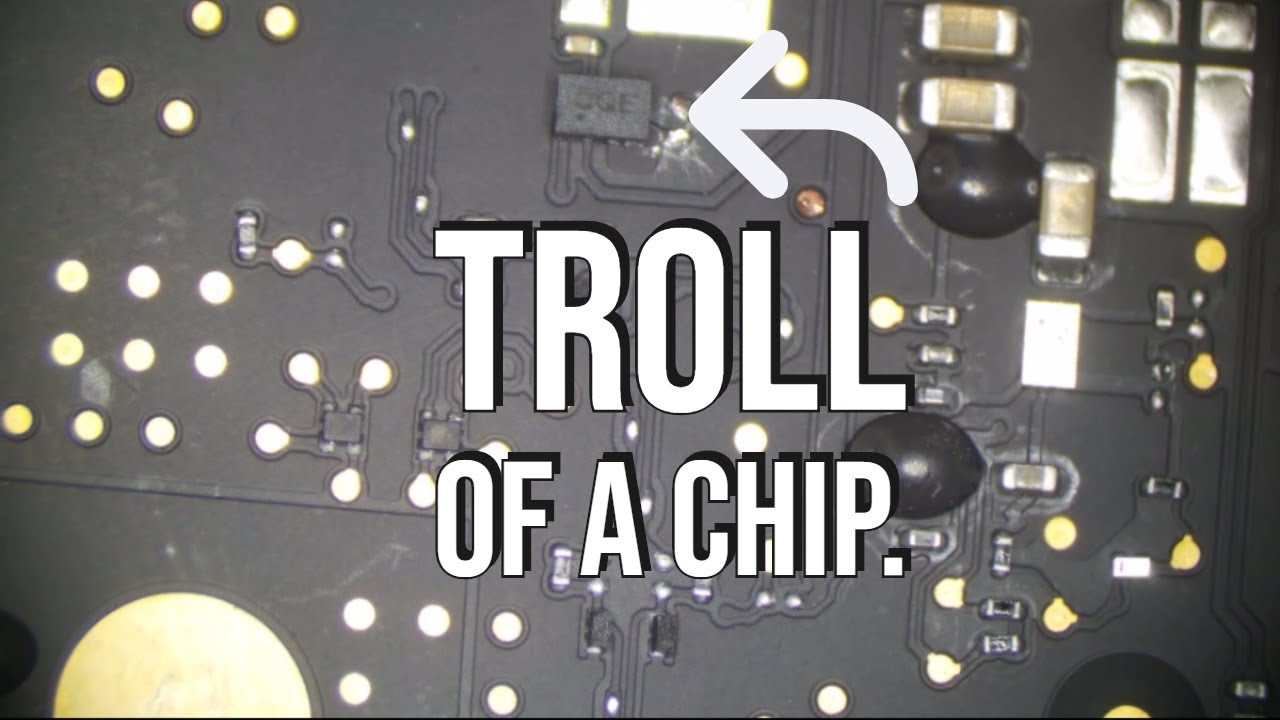

820-00165 partially entering S0 state do to voltage leakage to gnd on PP5v_s4rs3

Описание: This board trolled me. The fact that we got fan spin threw me off as I didn't think that would be possible with a partial short to ground on a S4 rail.

A couple things to note:
*This board was sent from another shop, that messed with the isl circuit.

*This board was liquid damaged some time ago, and run through a ultrasonic cleaner, leaving decimated components on the board.

*A drop caused this failure to present itself.

No ALL SYS PWRGD or PM PCH PWROK assertion.

Fans went fast as the board was basically braindead and just passing 5v_S0 voltage to the fan.

-------------------------------------------------------
