PNEUMATIC PISTON FILLING MACHINE 1 LITER CAPACITY
Автор: AMSON ENGINEERING
Загружено: 2013-10-18
Просмотров: 2480
Описание:
A Unique machine from AMSON ENGINEERING for filling Liquids and pastes...
Machine Model: Semi-Automatic Piston Filler Pneumatic, AEPPF1000
Machine overall size; 4 ft L X 1Ft W X 4 Ft H
Machine weight: 85 kgs approx.
All Material contact Parts are in SS304 grade, finished to mat.
Fill Barrel size: 80mm Bore X 200 Length(For 1000gms filling)
Output: 15 fills per minute with bigger nozzle.
Fill Capacity: 50gms-1000gms as per barrel size
Compressor required: 5.5 Kg.cm2, 3 cfm.( 125LPM)
Electricity Required: 220VAC, 50Hz, Single Phase.
Inbuilt Panel Box with timers switches and valves.
50 Liter Hopper comes with this machine,

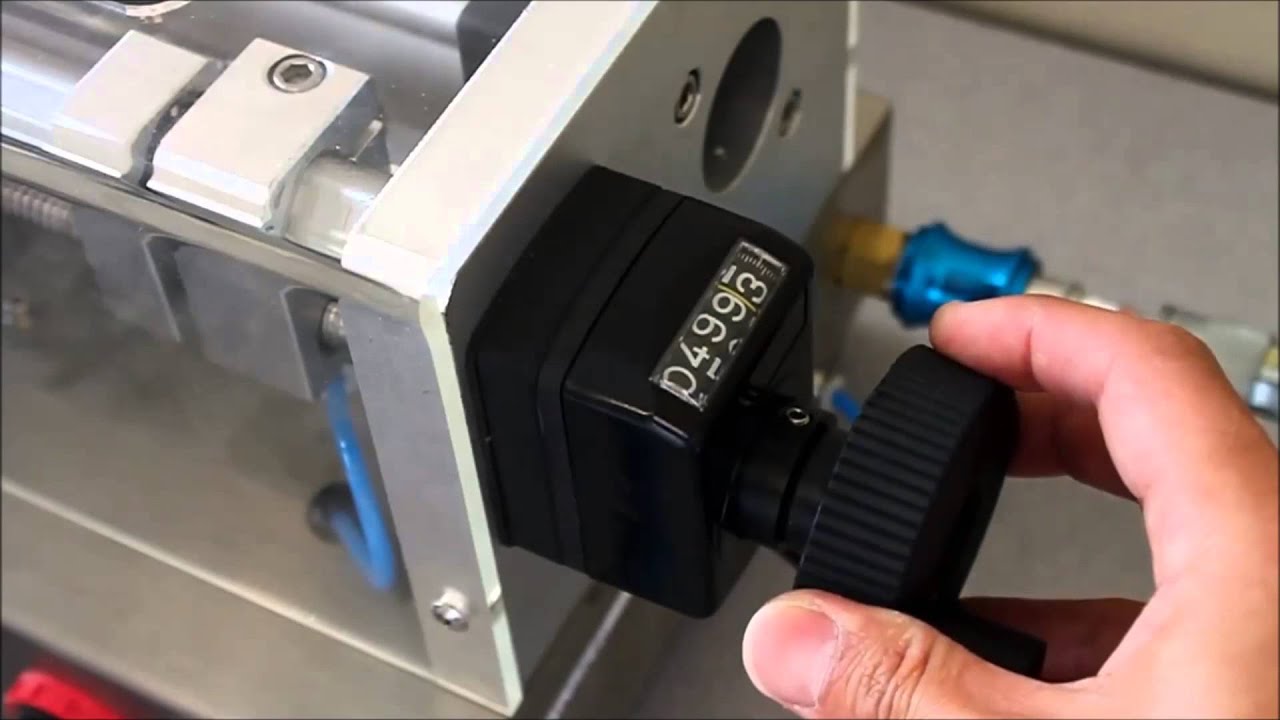

Adjustable stroke and fill volume with a hand wheel provided with the machine.
Adjustable fill height.
