Ep. 27 - YT624EJ M.S. - New Light and Overvoltage Protection Circuit
Автор: lucgallant
Загружено: 2025-03-04
Просмотров: 511
Описание:
00:00 Start
00:16 Introduction
00:59 New Light and Overvoltage Device
02:37 Schematic and PCB Walkthrough
04:58 Selling of Lights
06:53 Oscillograph Walkthrough

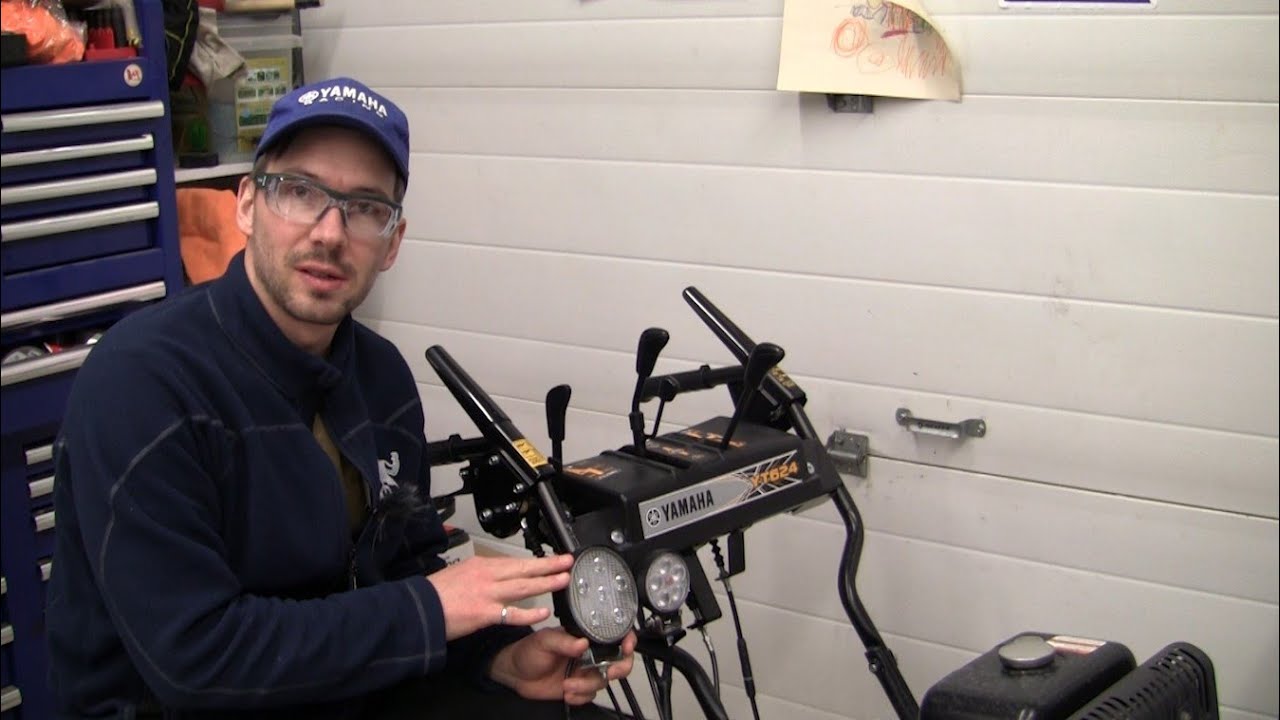

08:34 Installation of Light
10:30 Overvoltage Device Demo
11:35 Conclusion
This video introduces a new light option with built-in overvoltage protection.
Current price for these lights is $100. Subject to change based on tariffs and price of materials.
If you would like a light, send me an e-mail requesting with your complete mailing address at: lucgallant at gmail.com. E-transfer can be sent to the same address or Paypal if you prefer.
The bill of materials is as follows if you are interested in doing this or some variant of this yourself.
All following parts from Digikey:
Part P/N Qty
Fuse Holder BF303-ND 1
Plug 17-174354-2-ND 1
Pins A122986CT-ND 2
Plug Cap 17-174355-7-ND 1
Seals A126081-ND 2
R1 MFR-25FBF52-280R 1
R2 N/A
R3 RNMF14FTC150R 1
R4 RSMF2JT3R30CT-ND 1
Q1 497-7180-5-ND 1
D1 1N5231B-ND 1
Fuse 02351.25MXP 1
PCB can be cut with a CNC or ordered from JLCPCB or myself. KiCAD files located here: https://drive.google.com/file/d/11G7D...
Light is a Grote BZ111-5 and cheapest source I found was here:
https://www.thewrenchmonkey.ca/produc...
Happy building!!!
Thanks for watching!
