BMW F30 Reverse (Backup) Camera Retrofit
Автор: Omar Alassil
Загружено: 2016-07-01
Просмотров: 89608
Описание:
Note: Please see my new videos where I upgrades the camera module to fix the dynamic lines issue which appears at the end of this video: • BMW F30 Reverse Camera Module Upgrade/Inst...
In this video I retrofitted a reverse (backup) rear view camera for my BMW F30 2012 3 series.
Link to iDrive NBT retrofit video (Nav, DVD): • BMW F30 (3 Series) NBT Sat Nav Retrofit HU...
http://www.bimmerfest.com/forums/show...
Link to item on eBay: http://r.ebay.com/PUK2jK
After the installation, you need to add 3AG option and do VO coding for your REM and NBT modules. After that you should be able to see the camera when you shift to reverse.
After the installation, I have the following issues:
The dynamic guide line are not working properly, sometimes the appear for few seconds but then disappear
The view of the camera is a bit like' fish-eye' (very wide angel). The seller said that this is wide angel to give more wide viewing but my issue is its too wide to the extent it's showing the edge of the car rounded as you can see in the end of the video.
The seller suggested many things to help fix the issue of the guide lines but they didn't work. He even sent a replacement kit with quadlock harness which I tried but it gave same result. So it seems there is an issue causing the module not to read the bus properly so if anyone can help here please reply in comment and it would be much appreciated.
This job require the following:
Replace boot (trunk) handle

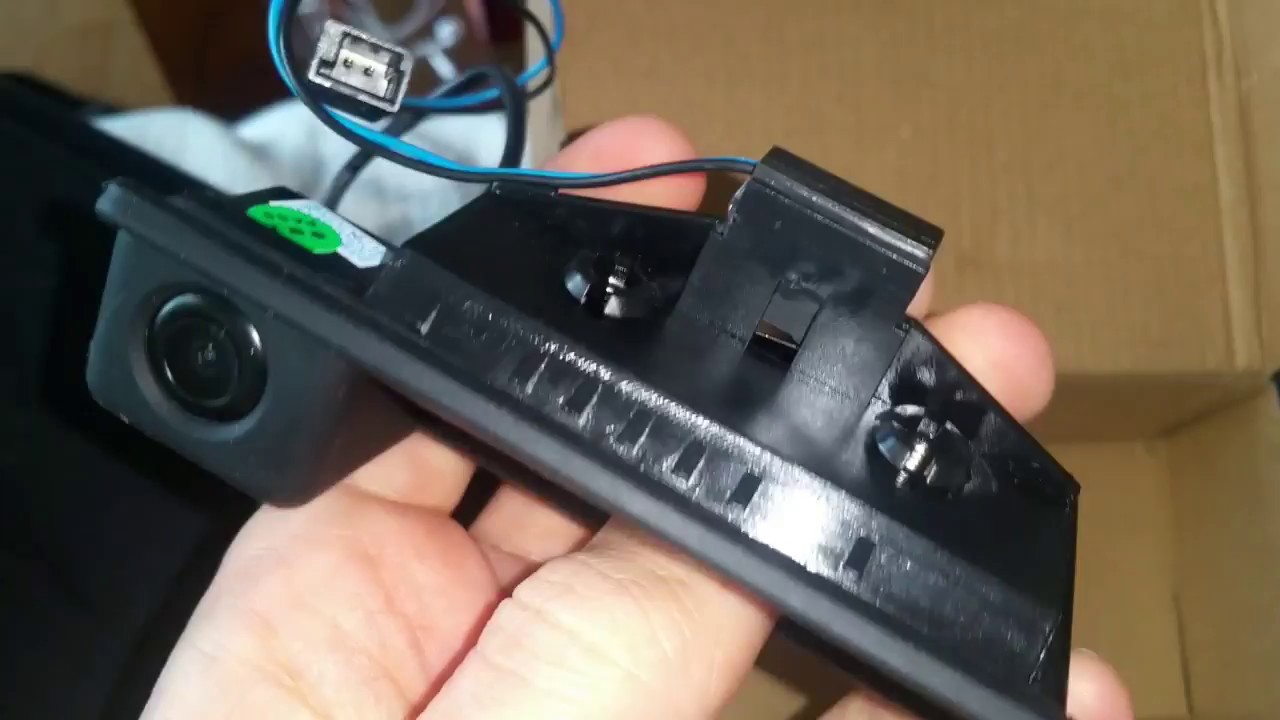

Install reversing camera handle
remove boot lid trim and carpet
remove boot side carpet
route a wire (video cable) through the car from the boot to the dashboard
Remove interior trim
Remove dashboard
Coding
Needed for the job:
Trim removal tool
Cloth tape for the loom
Reverse Camera
Camera module
Quadlock harness or appropriate wiring
T20 screwdriver
BMW Car :)
