Pioneer 2000 Watt 5 Channel Amplifier Unboxing | GM-D9705

Описание: Amplifier linked in the description below!

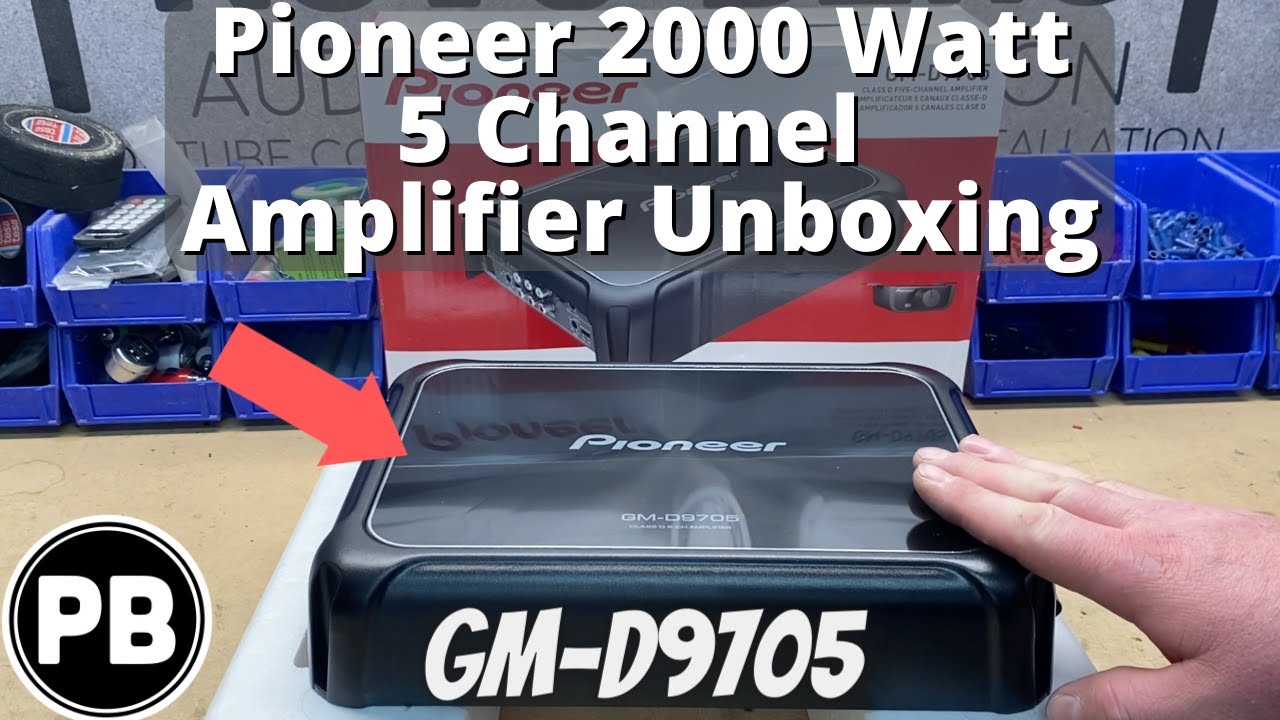

Watch an unboxing of the Pioneer 5 Channel Amplifier Amplifier GM-D9705 that can power either 3 or 5 speakers, depending on your system needs. This is a very versatile amplifier that allows you to power multiple speakers without taking up a ton of space.

Click here to purchase this amplifier (Amazon Associate Paid Link):
https://amzn.to/3rpyDBR

Recommended Amplifier wiring kit (Amazon Associate Paid Link):
https://amzn.to/34QaiuB

Disclosure: As an Amazon Associate I earn from qualifying purchases

See where this amp is installed on a Ford F150:
   • 2015 - 2020 Ford F150 5 Channel Amp and Su...

If you have any questions, leave a comment below! Be sure to like and subscribe!

*5 Channel Champion Series Class D Amplifier w/ Wired Bass Boost Remote
*Max Power Rating:
--4 ohms: 150 watts x 4 chan. + 700 watts x 1 chan.
--2 ohms: 200 watts x 4 chan. + 1200 watts x 1 chan.
--Bridged, 4 ohms: 400 watts x 2 chan.
*RMS Power Rating:
--4 ohms: 75 watts x 4 chan. + 350 watts x 1 chan.
--2 ohms: 100 watts x 4 chan. + 600 watts x 1 chan.
--Bridged, 4 ohms: 200 watts x 2 chan.
*Total power output: 2000 watts Max
*CEA-2006 Compliant Amplifier
*Pulse Width Modulated MOSFET power supply
*Wired remote bass boost level control included
*LED power (green) and protect (red) indicators
*Soft start turn-on
*Speaker-level (high-level) inputs
*5, 4 or 3 channel operation
*Dedicated, large-block subwoofer terminal output
*Nickle-plated RCA, Speaker and Power/Ground Terminals
*Selectable input modes:
--Front two channels (RCA Only) can provide signal to remaining channels
--Four channel High-Level connection can provide signal to Subwoofer channel
*3-way protection circuitry (thermal, overload, and speaker short protection)
*Heavy duty aluminum alloy heat-sink for extreme heat dissipation
*Input sensitivity:
--Low level: 200mV - 6.5V
--High level: 800mV - 16V
*A/B Channel Frequency Response: 10 - 50,000 Hz (+0dB, -3dB)
*Sub-Channel Frequency Response: 10 - 500 Hz (+0dB, -3dB)
*Total Harmonic Distortion (THD): 0.05%
*Signal to Noise Ration: 94 dB
*Selectable crossover filter (Ch 1 - 4): LPF / OFF / HPF
*Variable crossover filter (Ch 1 - 4): 40 - 500 Hz, 12 dB/octave
*Variable low-pass filter (Sub): 40 - 500 Hz, 24 or 12 dB/octave
*Variable Bass Boost (Via Remote): 0 to +18 dB bass boost at 50 Hz
*Fuse Rating: 30A x 3
*8 - 16 Gauge speaker terminal outputs
*4 gauge power and ground wiring is recommended for installation. *Contact us for information regarding a discount on select amplifier kits *from our website when purchased together with this amplifier. Click Here *for our contact information.
*Dimensions: 7-7/8"W x 12"L x 2-3/8"H
