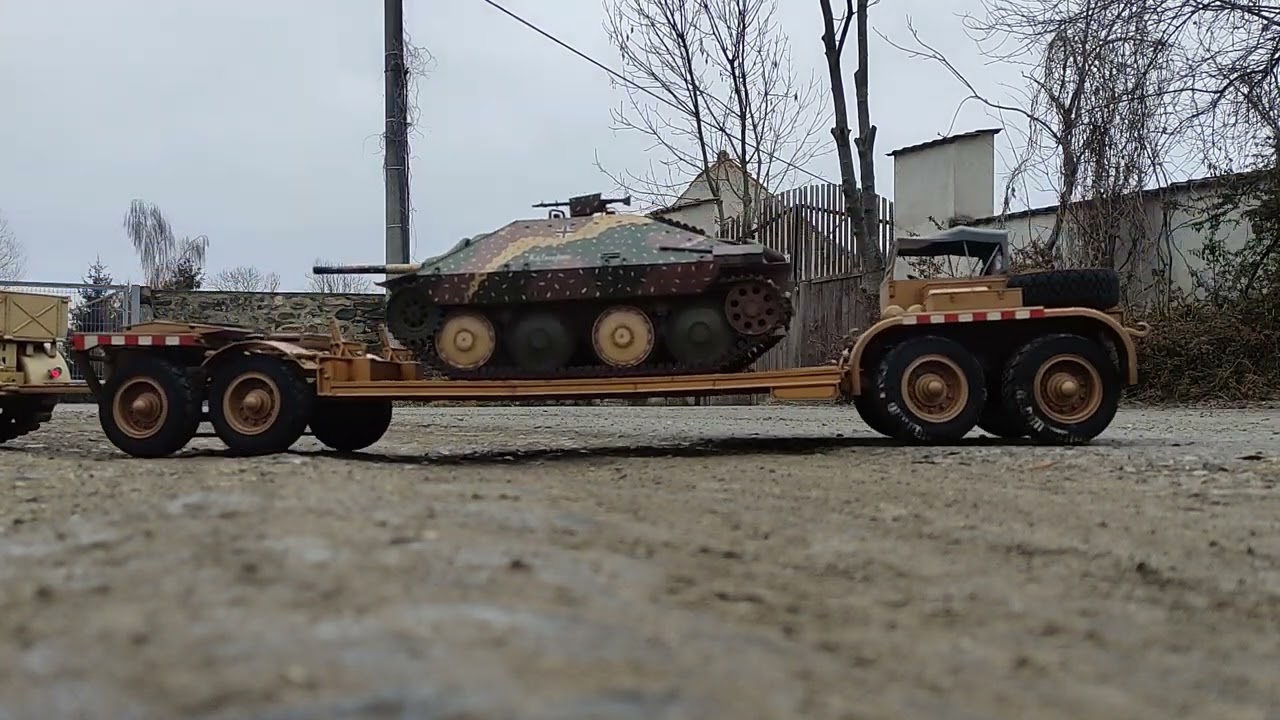

1/10 RC german Sd.Ah.116 tank transporter trailer

Описание: Fully 3D printable german Sd.Ah.116 tank transporter trailer in scale 1/10.

Link to download:
https://cults3d.com/en/3d-model/game/...

Link to assembly guide:
https://drive.google.com/drive/folder...

The Tiefladeanhänger für Panzerkampfwagen 22/23t (Sd. Ah. 116) - flat bed trailer for armoured vehicles - was officially introduced in December 1940. It succeeded the similar testing model which was designated Tiefladeanhänger für Panzerkampfwagen 20t (Vs. Ah. 642). Armoured vehicles up to a weight of 22 tons, later 23 tons, could be transported. On the rear carriage there was a cabin for a second driver. Usually, it was towed by a SdKfz. 8 or a SdKfz. 9 Famo.

For loading or unloading an armoured vehicle, the platform had to be lowered and the rear bogie had to be removed. Although the payload was specified as 22/23 tons, heavier loads up to 28 tons were sometimes transported with the Sd. Ah. 116.

The Sd. Ah. 116 had a total length of 14.4 meters and a width of 3 meters. The whole train had a considerable length which demanded a high grade of expertise from the drivers.

Lenght: 1410mm
Width: 300mm
Height: 258mm
Weight: approx 3kg

Detailed, full of functions and easy to build (print).
Functional suspension.
Both front and rear bogie steering.
Detachable both front and rear bogie.
Functional barrel recoil.
Capable of carrying a load up to 5kg.
Printed tyres.

The steering of both bogies is mechanical so no electronics are required for the trailer to function properly.

The model contains everything what you need to print and build the vehicle
STL files for every printed part, assembly guide and shopping list (screws, bearings and other...)
