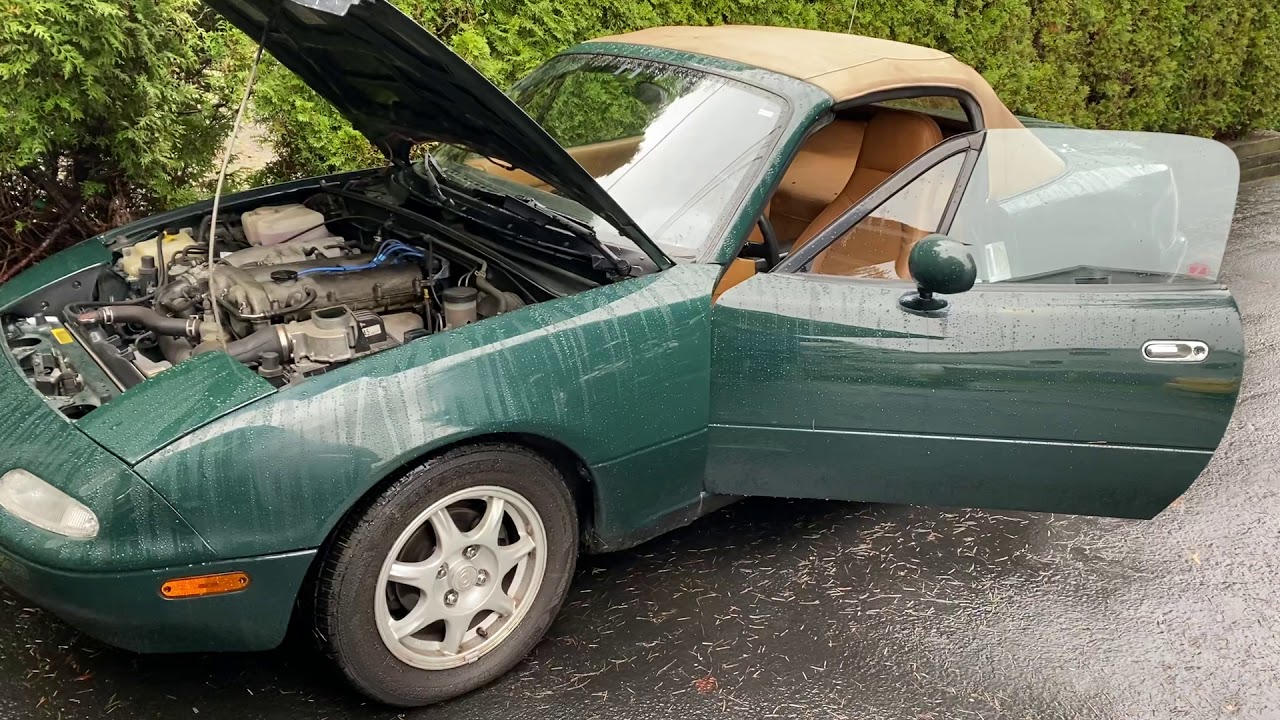

How to check for “Codes” on a 1990-1995 Mazda MX-5 Miata.

Описание: This video shows you how to check for diagnostic trouble codes / engine fault codes on pre-OBD2 Mazda MX-5 Miata and Eunos Roadster (1990-1995).

If your Miata has a code stored in its ECU / Engine Control Unit / Computer, the engine light or “MIL” Malfunction Indicator Light will flash.

For single digit codes: It will flash quickly. The number of flashes is your code number.

For two digit codes: It will flash and stay on for aprox 2 seconds, followed by a series of quick flashes.

Here is what the flash codes mean:

1990-1993:
1 Ignition pulse (no igf signal).
2 No Ne signal.
3 No G signal.
8 Airflow meter.
9 Water thermistor / coolant temperature sensor. .
10 Intake air thermistor in airflow meter.
12 Throttle position sensor open or short circuit.
14 Atmospheric pressure sensor (inside the ECU).
15 Oxygen sensor.
17 Oxygen sensor.
26 Purge solenoid valve (Evap canister purge valve).
35 ISC valve.

1994-1995:
1 IGF signal.
3 SGT signal.
4 SGC signal.
8 Mass airflow sensor.
9 Coolant temp sensor.
10 Intake air temp sensor.
12 Throttle position sensor.
14 Atmospheric pressure sensor (inside the ECU).
15 Oxygen sensor.
16 EGR function sensor.
17 Oxygen sensor.
25 PRC solenoid valve.
26 Purge solenoid valve (Evap canister purge valve).
28 EGR solenoid valve (vacuum).
29 EGR solenoid valve (vent).
34 ISC valve.
