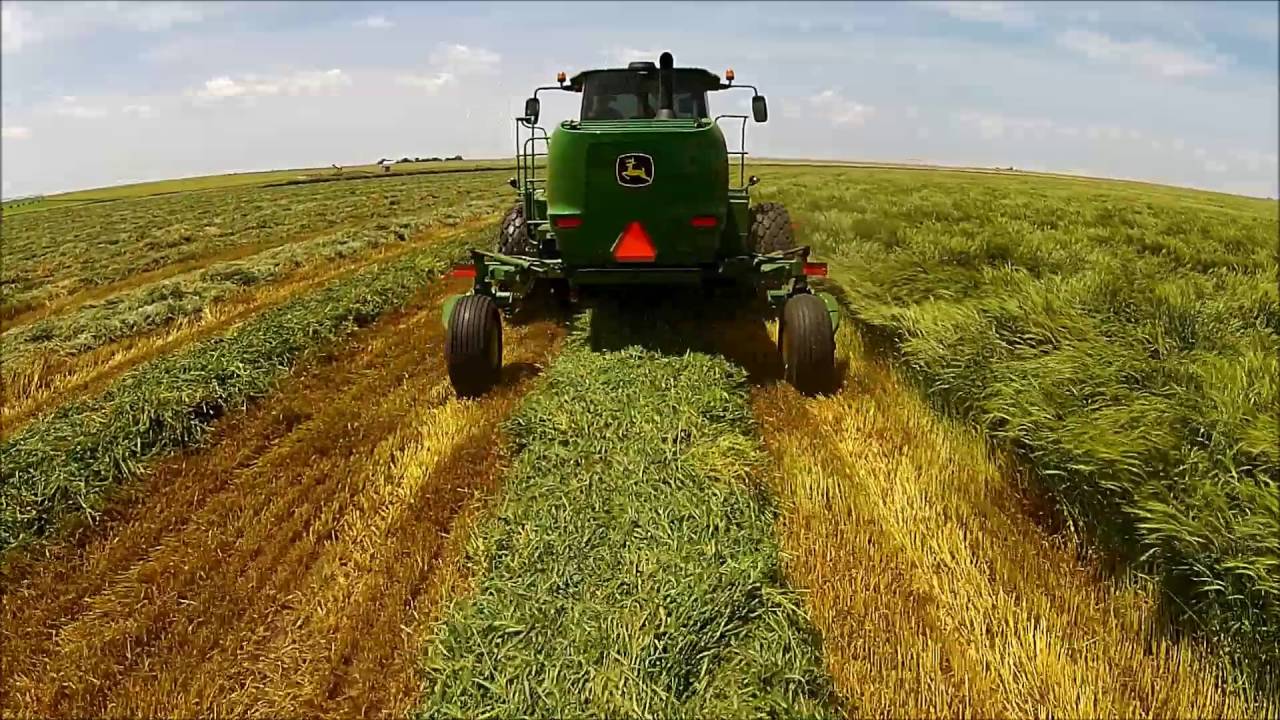

W260 SELF-PROPELLED WINDROWER
A feature unique to the W200 Series Rotary Traction Units, constant header speed, is made possible by a state-of-the-art platform hydraulic pump control system that monitors platform speed and controls the pump to maintain a required speed. Constant header speed translates to a consistent cut quality and uniform windrow formation throughout varying crop conditions and terrain changes.
KEY SPECS:
ENGINE -MODEL: 6.8L PSS Final Tier 4
HORSEPOWER: At 2,400 rpm: 193.9 kW 260 hp
GROUND DRIVE - TYPE: Two-speed hydrostatic
FUEL - CAPACITY: 568 L and 150 U.S. gal.
LOW RANGE: 24.1 km/h or 15 mph
HIGH RANGE 2 SPEED / MID RANGE 3 SPEED: 33.8 km/h or 21 mph
VEHICLE: Large drive tires and suspended rear axle in base
SEAT: Air suspension, swivel fore-aft attenuation
UNDER FRAME CLEARANCE: 1,120 mm / 44 in.
WEIGHT - TOTAL: 7348 kg or 16200 lb
KEY FEATURES:
The W200 Series Self-Propelled Windrowers feature the largest cab in their class, designed to maximize operator comfort and machine
productivity for long harvest days. The W200 Series’ four distinct cab options provide flexibility in matching the right features for every
operation.
All configurations come standard with the following:
• JDLink™ system enabled
• AutoTrac™ assisted steering system ready
• 12 percent light-tinted rear window
• Automatic temperature control
• Business-band ready
• Interior rearview mirror
• Two halogen rear work lights
Choose from a variety of options the economy, standard, premium, and ultimate cab packages offer in terms of external lighting and mirrors, windshield wiper, sun shades, operator seat, upholstery, storage, refrigerator, radio, steering column, CommandARM™ controls, and display.
500R WINDROWER PLATFORM
KEY SPECS:
COMPATIBILITY: R450, W235, W260
CUTTING WIDTH: 5m / 16 ft
CUTTING HEIGHT: 17 to 178 mm / 0.6 to 6.7 in.
OVERALL WIDTH (TRANSPORT): 5m / 16.25 ft
WEIGHT: ---
WITH FLUTED STEEL CONDITIONER: 2,173 kg
KEY FEATURES:
Improved performance and durability from rotary cutterbar components
• Large oval disks with free-swinging knives
• Designed to retract when striking solid objects
• Wear caps, crop accelerators, and strippers deliver improved platform performance and lowered cost of operation
