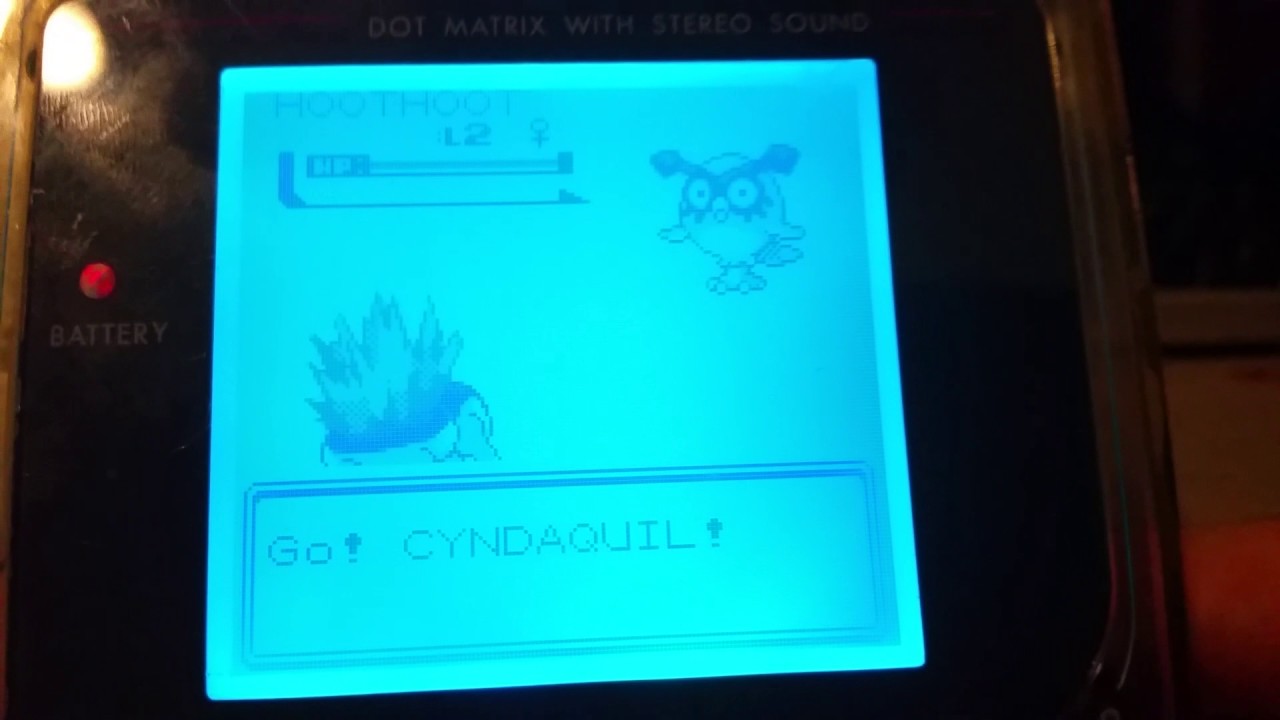

Backlit Digital RGB Biverted Nintendo Gameboy DMG Mod All Finished!!!
Автор: sjm4306
Загружено: 2016-12-16
Просмотров: 3864
Описание:
Finally got around to finishing this mod so I can play in the dark with any color backlight I wish. I ended up programming a tiny pic12f629 microcontroller to read the button press, generate the RGB PWM, and save the current color to eeprom. For maximal display clarity I also biverted the lcd. Finally, to minimize permanent physical modification to the gameboy I installed a touch sensor to allow you to change the color by tapping the top right corner of the gameboy. Stay tuned for a full series of step by step how to videos as well as schematic and source code.
I've posted a link for Ebay purchase referrals. Full disclosure: I'm trying out something new, if you use the link below then I get a small kickback from your purchase (it will cost you nothing, I just get paid for referring customers).
https://ebay.us/J8FqJg
Visit my site: www.diytronics.blogspot.com
Patreon: www.patreon.com/sjm4306
