Hole Tolerance Definitions - Features:ADSCvid
Автор: Altium
Загружено: 2015-11-12
Просмотров: 2061
Описание:
[MUSIC PLAYING] It's never enjoyable getting back a board from your manufacturer that has to be respun because your design intent wasn't communicated clearly. And we all know how fast costs can spiral out of control as we rely on respin after respin to get things done right.
So while your primary goal might be to design advanced boards, you also need to design manufacturable boards at the lowest possible cost that are produced right the first time. It's now easier than ever to both communicate your design intent to your manufacturer and produce boards at the lowest possible cost with hole tolerance definitions in Altium Designer.

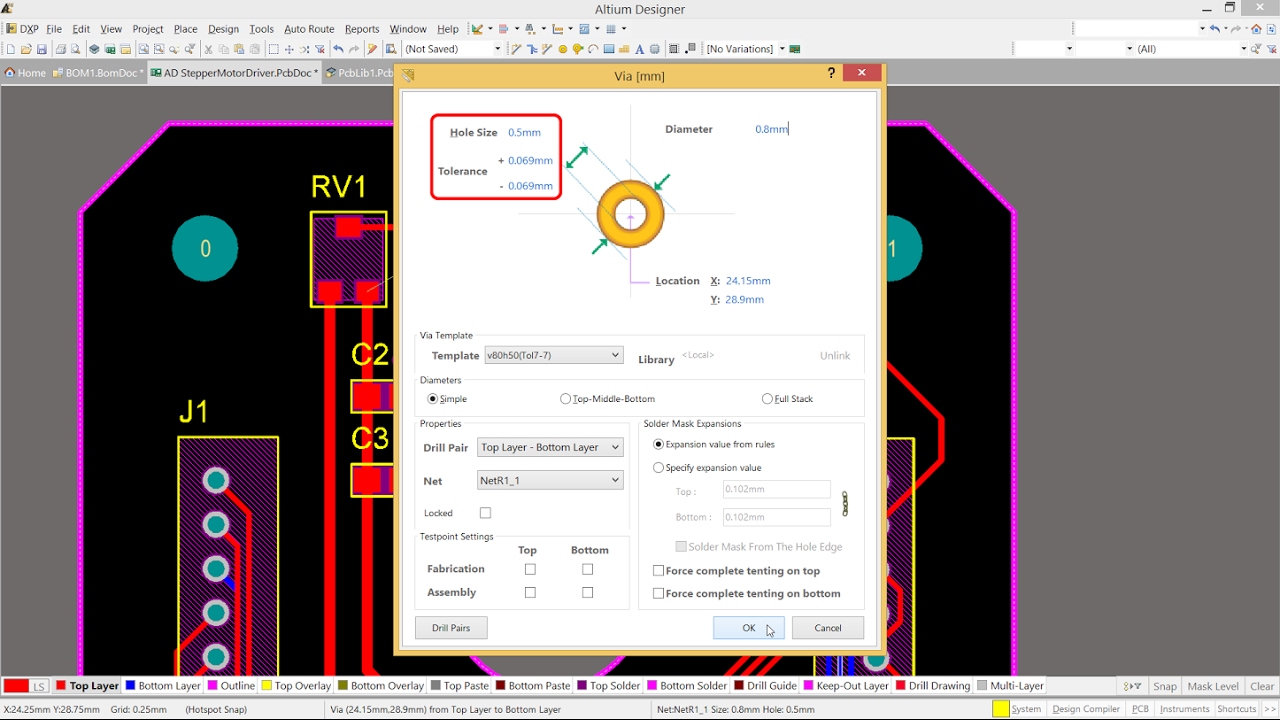

Quickly define hole tolerance values directly in your pad and via properties, and even create templates that can be instantly applied to every pad or via on your design. With specific hole tolerance definitions, you never have to worry about plating bolts in your through holes, and your manufacturer will understand your design intent perfectly with the added details in your drill table.
