V and M diagrams example complete
Автор: Terry Brown Mechanical Engineering
Загружено: 2015-11-23
Просмотров: 29505
Описание:
Shear and bending moment diagram example. This is the complete tutorial. You can also watch it in parts.

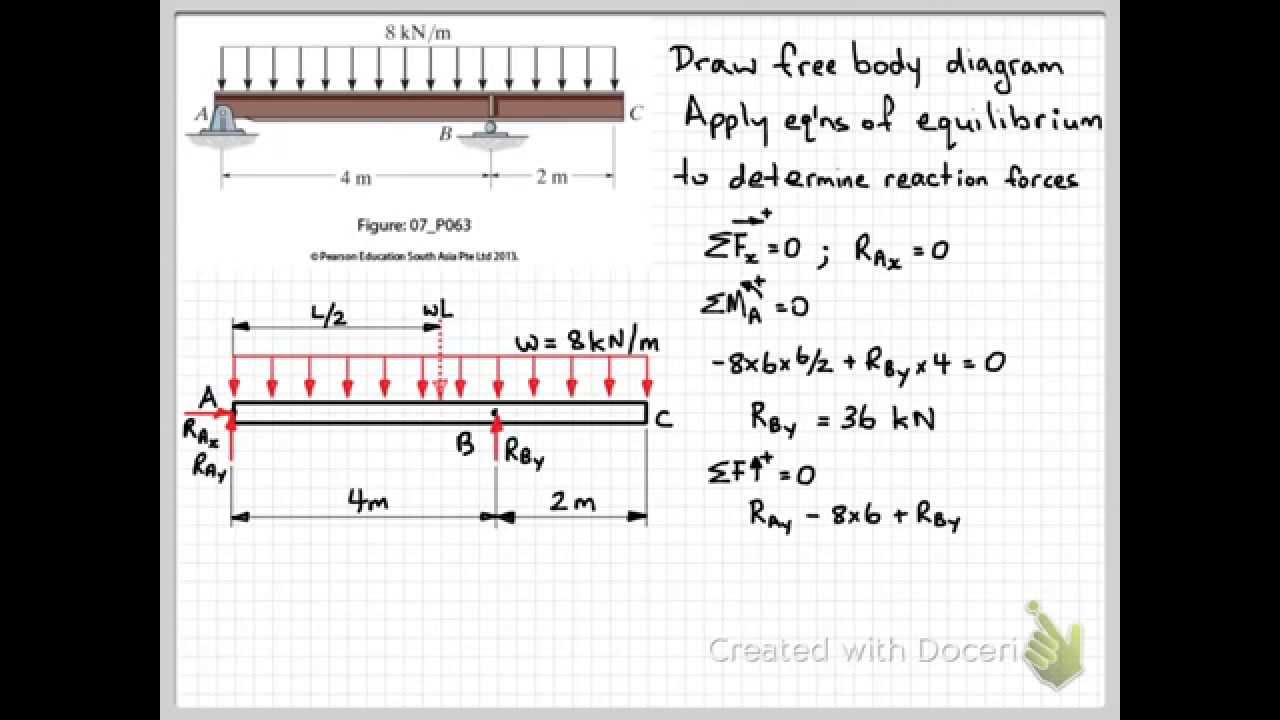

Part 1 - drawing free body diagram, applying equations of equilibrium, calculating reactions. • V and M diagrams Part 1 FBDs and Reactions
Part 2 - determining internal actions for section AB. • V and M diagrams Part 2 Internal Actions S...
Part 3 - determining internal actions for section BC. • V and M diagrams Part 3 Internal Actions S...
Part 4 - drawing the shear and bending moment diagrams. • V and M diagrams Part 4 Drawing the diagrams
