Isometric View of Hexagonal Prism | Vertical & Horizontal Axis | AutoCAD | Engineering Drawing
Автор: SK EduVerse
Загружено: 2026-01-01
Просмотров: 278
Описание:

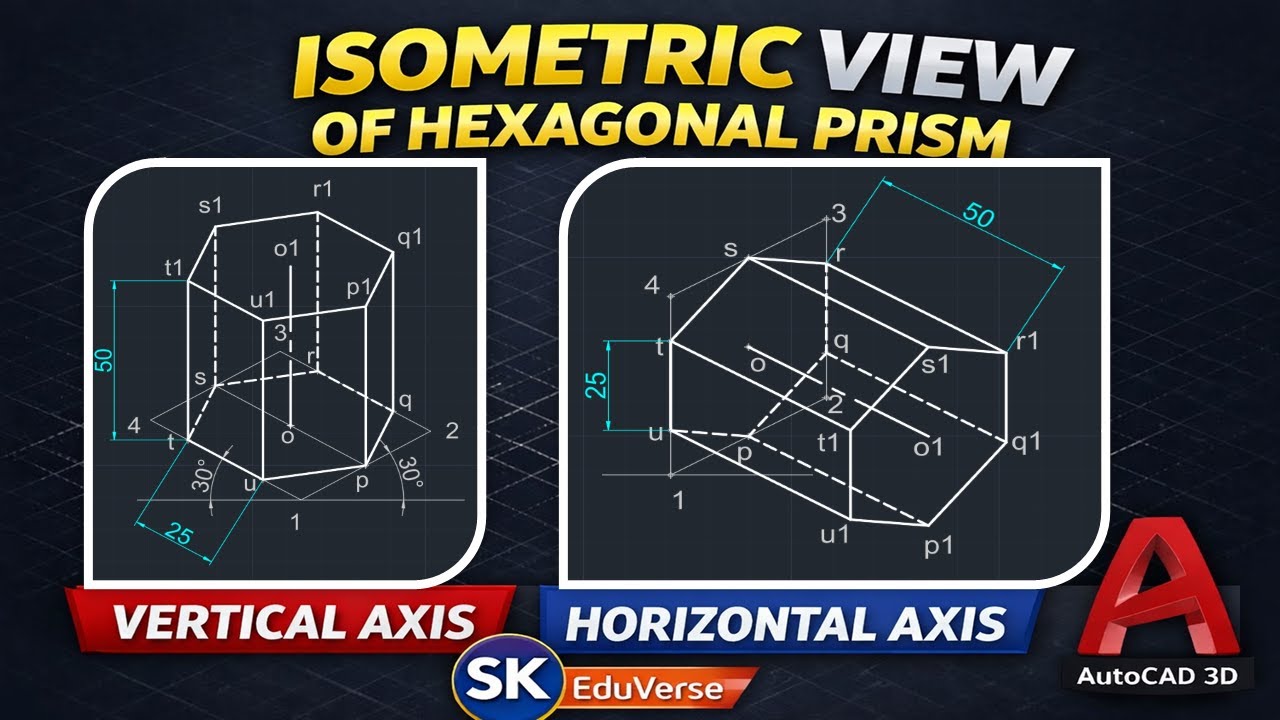

In this video, the isometric view of a hexagonal prism is drawn clearly using AutoCAD, as per engineering drawing standards.
The prism has a base edge of 25 mm and an axis length of 50 mm, and the isometric view is constructed for two different positions:
a) When the axis is vertical
b) When the axis is horizontal
This tutorial explains the step-by-step AutoCAD method to accurately draw isometric views, helping students improve visualization skills and perform well in exams and practicals.
This video is especially useful for Engineering Drawing, Engineering Graphics, Diploma, and B.Tech Mechanical Engineering students.
📌 Watch till the end to understand both axis positions clearly.
