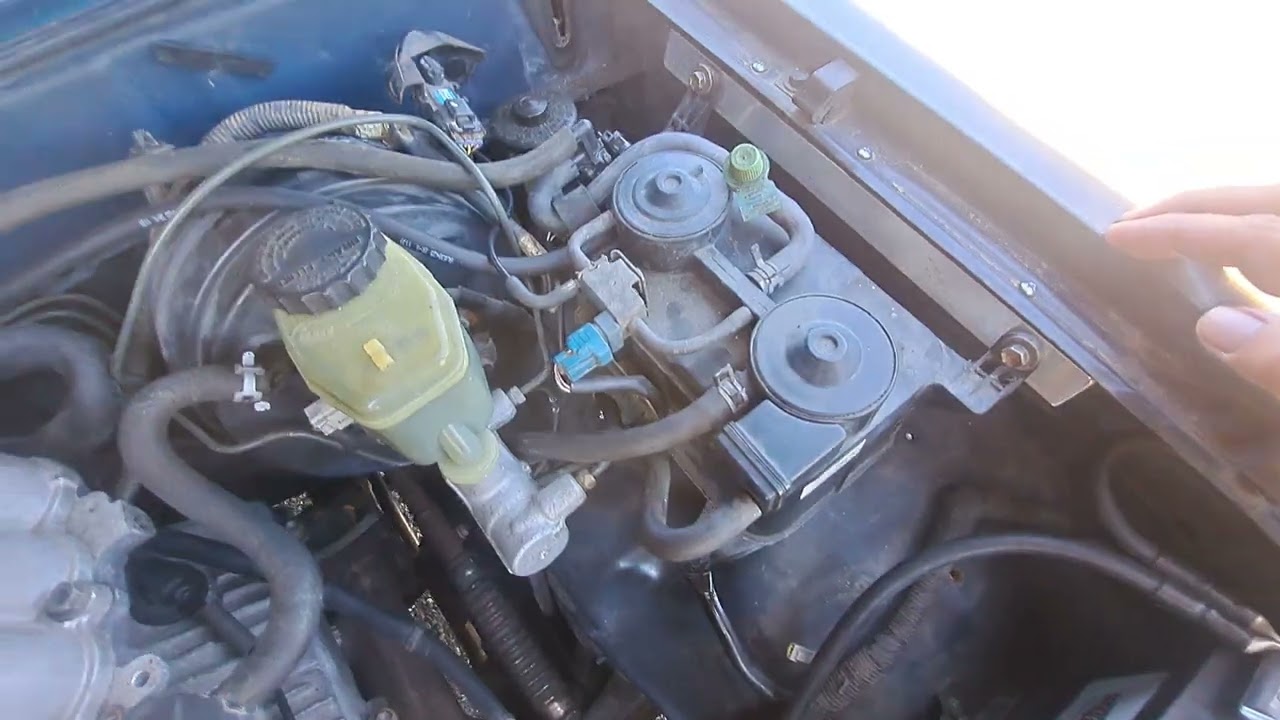

1993 Toyota 2wd, manual pickup with 5VZ-FE Swap

Описание: 1993 Toyota Pickup, 2wd, 5 speed manual with a 5VZ-fe swap from a 96-98 T-100, (same as Tacoma or 4Runner from those years)

97 T100 ecu mated with custom pinned harness from Josh Young in Oregon.

Engine used 3vz brackets to 3vz engine mounts. stock 3vz oil pan and pick up tube was transfered over. stock 3vz transmission bolts right up to engine. Clutch used a stock 5vz pilot, disc, and pressure plate using a 3vz throwout bearing. Off-Road Solutions oil dipstick relocation kit was used to relocate dip stick from front of engine to drivers side port. Stock 3vz radiator, fan shroud, and fan were also used. fan shroud needs minor trim on corner. Fuel flex line from 5vz was used to connect to stock fuel hard line. stock tacoma fuel pump fits in pickup pump location. no modifications needed. Power steering high pressure line from a non abs Toyota 2wd v6 bolts to stock 5vz pump. stock 3vz crossover line used for return line.

Exhaust used a Off-Road Solutions cross over, down to their custom collector, to a Magnaflow 2.5" catalytic converter, using 2.5" pipe with a Magnaflow 14" long muffler to stock exit.
