Plasma cutting is incredibly useful. Paired with bending and welding it is often the fastest and cheapest way to build any kind of mechanical structure or enclosure. Results that might take a day on a 3D printer or on a CNC mill can be achieved in minutes on a plasma cutter. Not to mention the cost of sheet metal is a lot cheaper than 3D printer materials or billet for machining. I'm constantly making folded and welded structures with my plasma cutter and every time I have the same problem. I will design a complicated folded part and then when I go to bend it I can't place the bends accurately. I'll spend a lot of time trying to measure them out but the plasma cutter can make any arbitrary shape which can make measuring difficult.

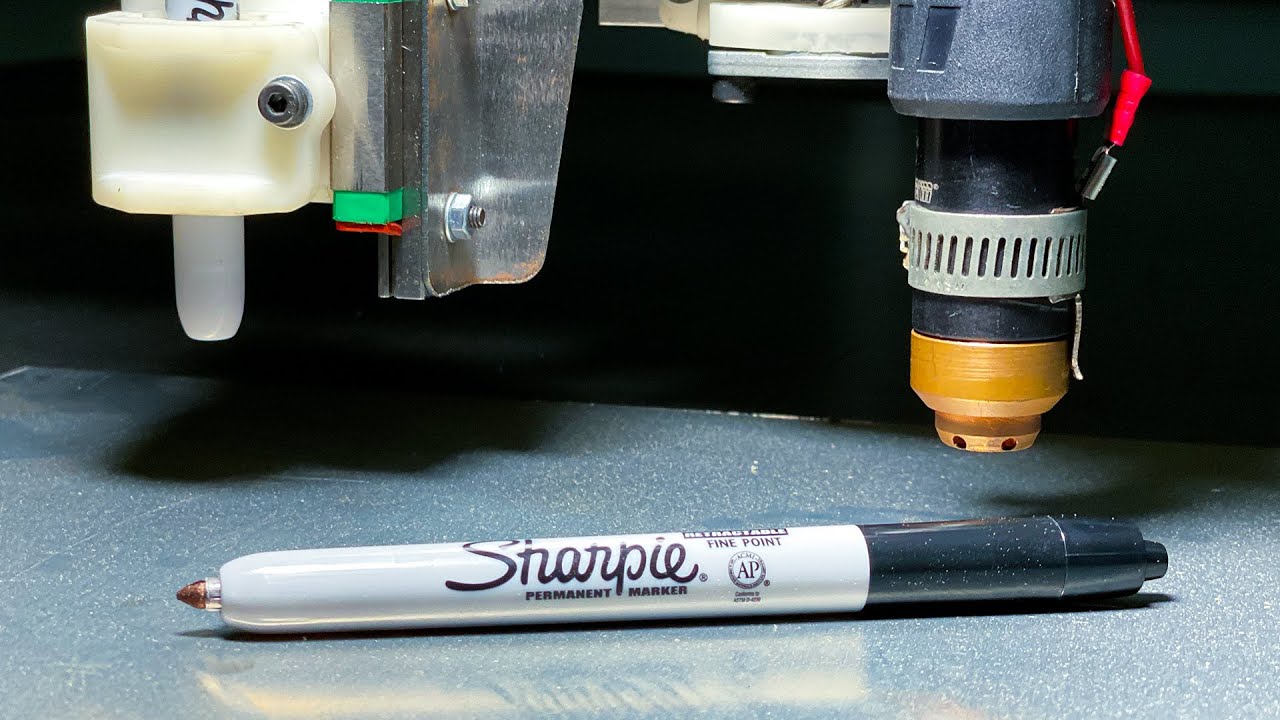

To solve this problem I designed and built a pen plotter head for my plasma cutter. It allows me to first draw all of the bend lines then cut out the part. This gives me perfectly registered bend locations that make folding the parts really easy.

This video details how I designed it and how it works.
