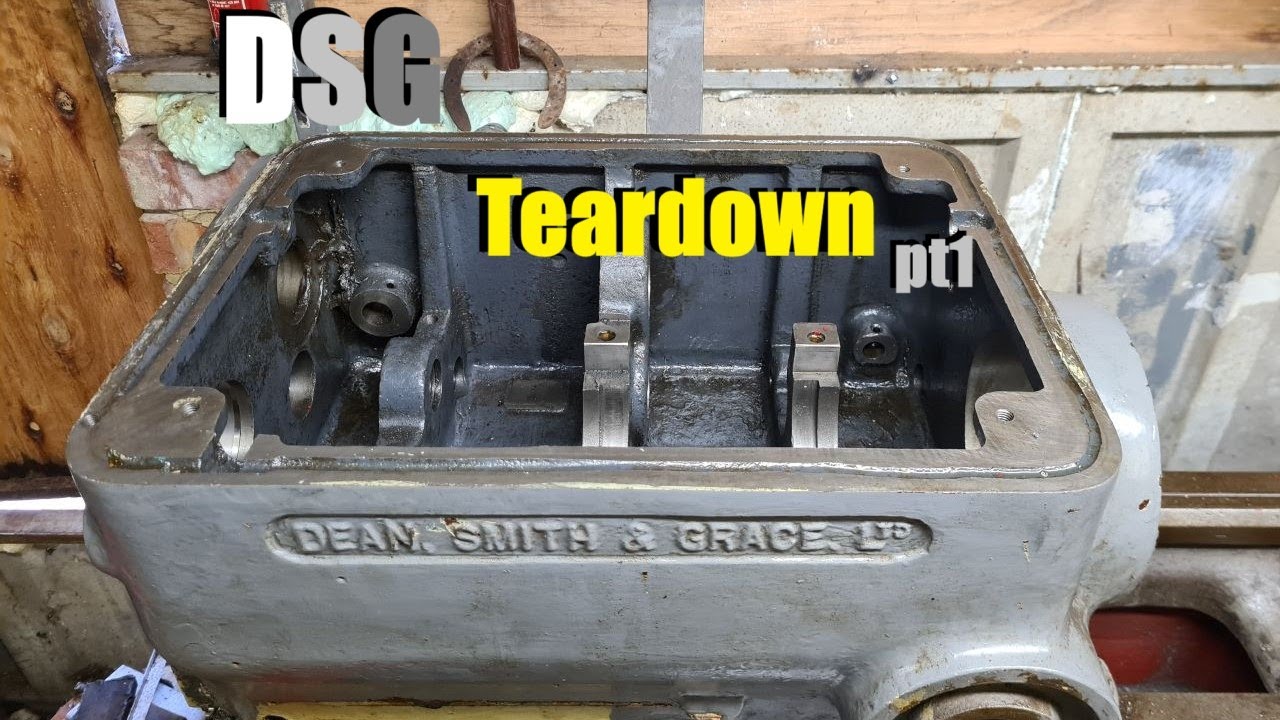

DSG Lathe Restoration pt1

Описание: First of 3 parts consisting of The Teardown, The Fixup, The Reassemble
where i will fully restore this Dean Smith & Grace z13 minor Lathe

hear are some details :

bed number: 20486
main leadscrew length:197cm
cross slide screw length :532mm
top slide screw length: 224
tailstock screw length :328

main headstock bearings : ID 69.85mm / OD 133.30mm
rear spindle bearings : ID 50.80mm / OD 101.60mm

power rod :151cm
clutch bar: 151cm

headstock Hi/Low Gear size : bigside dia 255mm/ smallside dia/160
headstock Hi/Low Gear Teeth : big-side 96t / small-side 60t
headstock Hi/Low Gear bearing size : ID 76.20mm / OD 114.27mm

full bed length: 1835mm
length of ways on bed : neer 1364mm / far 1144mm
width of bed: 300mm
saddle : width 441mm / height 479mm

howl lathe size : width 2205mm / height 1195 / depth 715mm
headstock size : width 605mm / height 350 / depth 378mm

current chuck dia: 255mm
spindle length: 765mm
spindle bore: 36mm
tailstock : width 250mm / height 201 / depth 251mm
tailstock bore : mt3
tailstock plunge depth: 150mm

headstock number of bushings: x5
headstock number of bearings :x10

current motor :
hp: 3
single phase

all bearings marked R&M
clutch manufacture: The Taylors
lathe manufacture : Dean Smith & Grace
model :z13 minor
year: 1940
made in : Keighley, England
