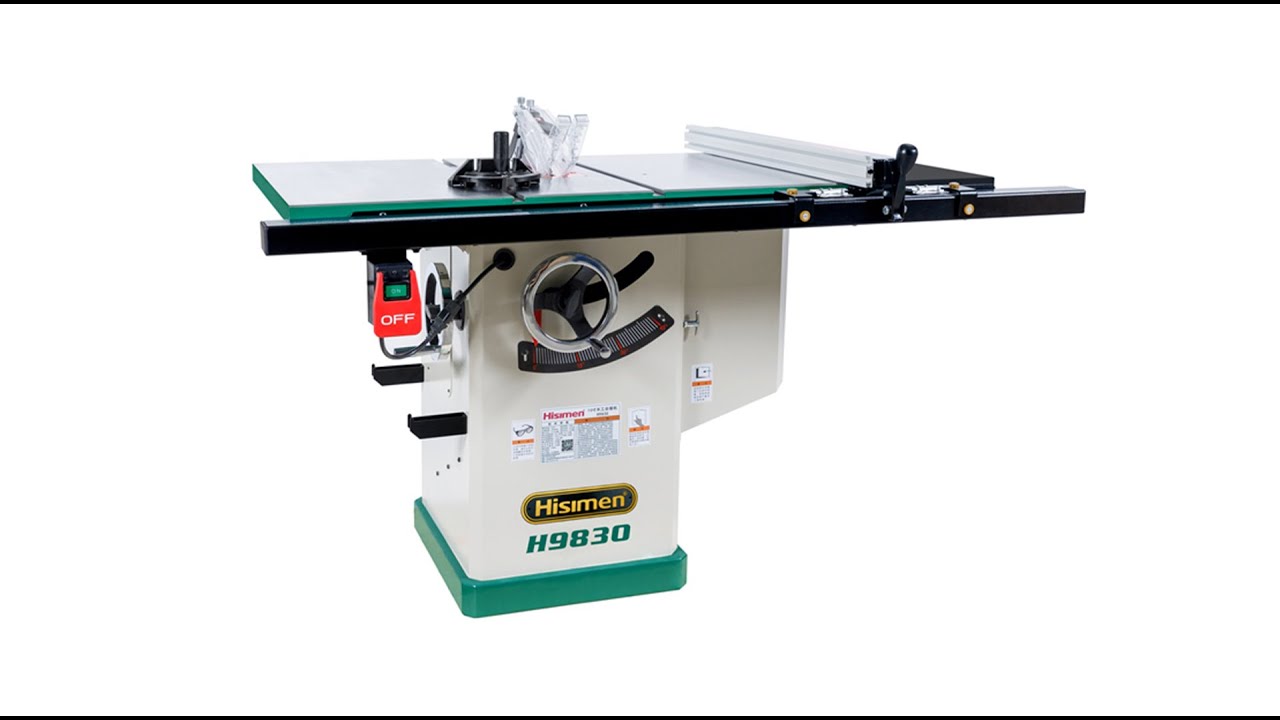

table saw of 10inch (H9830)
Автор: Juina Lee
Загружено: 2019-09-03
Просмотров: 2243
Описание:
Motor Power 2500W
Material of main working table Cast iron
Main working table size 1120x686mm
Extension table size 305x686mm
Standard saw blade 254x15.875x2.8mm 40 teeth
DADO blade(optional) 203x15.875mm
Max DADO slot 20.6mm
Blade speed 3550RPM
Blade tilt Left 45°
Max cutting thickness90/45 degree 85/57mm
Suspension lifting structure dovetailed
Table height 870mm
Inlet diameter 100mm
Machine size 1630x1060x1040mm
N.W/G.W. Main body:183/223KG
Rail:16/22KG
Packing size Main body:930x825x1150mm
Rail:1680x140x150mm
•Depth of cut at 90°& 45°:3-3/8"&2-1/4"
•Max. cut right of blade with rip fence:54"
•Max. cut left of blade with rip fence:34"
•Large table surface 44" *27" with unsurpassed flatness.
Contact person : Juina
Mail address: [email protected]
Tel., +86 532 80922156
Mob, +86 17762038877 (whatsapp & WeChat)
Shandong HICAS Machinery (group) Co., Ltd
Website: www.hicasmach.com
Https://hicas.en.alibaba.com
